Granite Engraving Machine

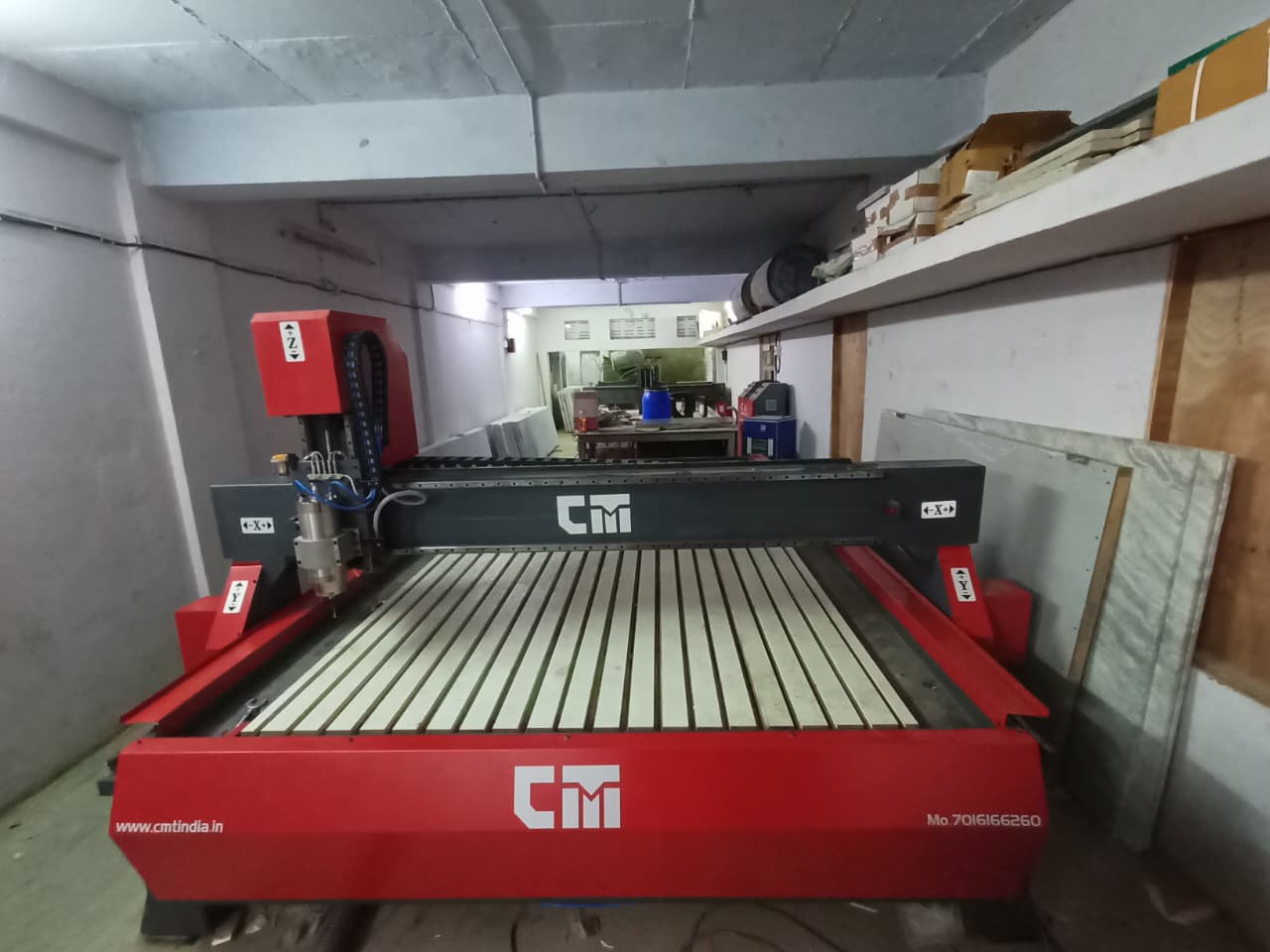

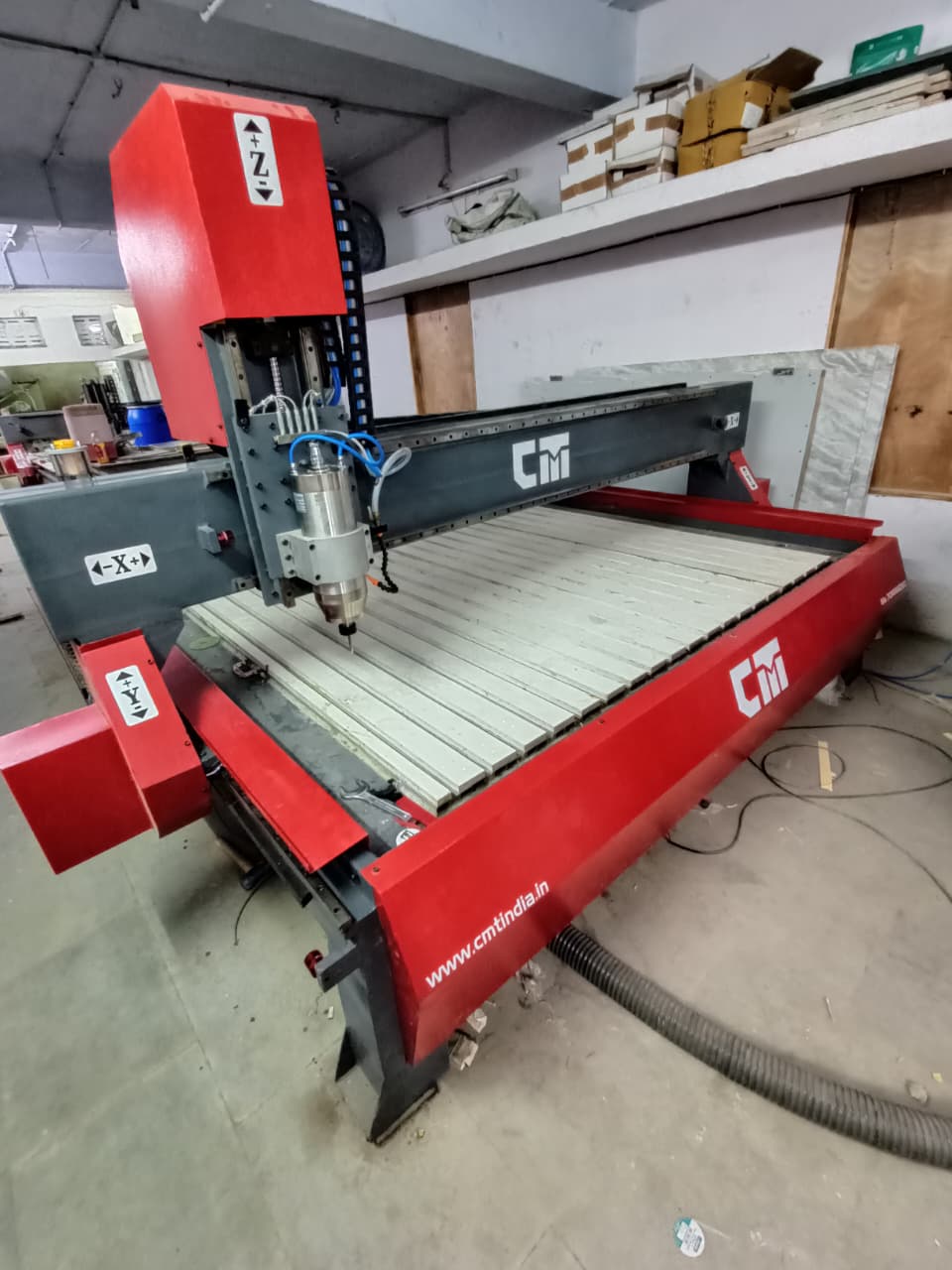

The Granite Engraving Machine is a precision CNC system designed specifically for engraving text, artwork, patterns, and photographs onto granite surfaces. Built for heavy-duty performance, it is the ideal solution for manufacturers and artisans involved in monument making, architectural stonework, and customized granite engravings.

This granite stone engraving machine ensures consistent quality, deep etching, and minimal wear, even when working with the hardest stone materials.

Manufacturer: Competence Techno Engineers Pvt. Ltd.

Technical Specifications (example – customizable)

Specification

Details

  • Working Area
  • X-1530/1830 mm
    Y-3050/3650 mm
    Z-300/600/900 mm
  • Transmission
  • X-1.25M Helical Rack
    Y-1.25M Helical Rack
    Z- 25*10mm Pitch Ball Screw
  • Axis Motor
  • Easy Servo / Servo
  • Drive System
  • Planetary Gear box
  • Linear Guide Rail
  • 25 mm LM Guide
  • Spindle Type
  • 5.5 kw(Water cooled)
  • Spindle RPM
  • 24000
  • Max Travel Speed
  • 30000 mm/min
  • Machine Accuracy
  • 100 micron
  • CNC controllers
  • DSP WEIHONG NK 105
  • Working Command
  • G-CODE
  • Lubrication
  • Auto / Manual
  • Key Features

    Specially engineered for granite and other hard stones

    Water-cooled spindle for continuous and deep engraving

    High structural rigidity for vibration-free performance

    Supports G-code programming for precision output

    Compatible with photo-etching, lettering, and 3D designs

    DSP controller with offline operation

    Optional rotary attachment for cylindrical stone work

    Applications

    Granite memorials and tombstones

    Stone plaques and nameplates

    Religious and architectural granite art

    Inlay work and photo etching

    Custom granite countertops and panels

    Get unmatched durability and detail with our granite stone engraving machine. Contact Competence Techno Engineers Pvt Ltd for machine specs, pricing, and customization.
