CNC Wood Rotery Machine

Home / CNC Wood Router Machine /

CNC Wood Rotery Machine

CNC Wood Rotery Machine

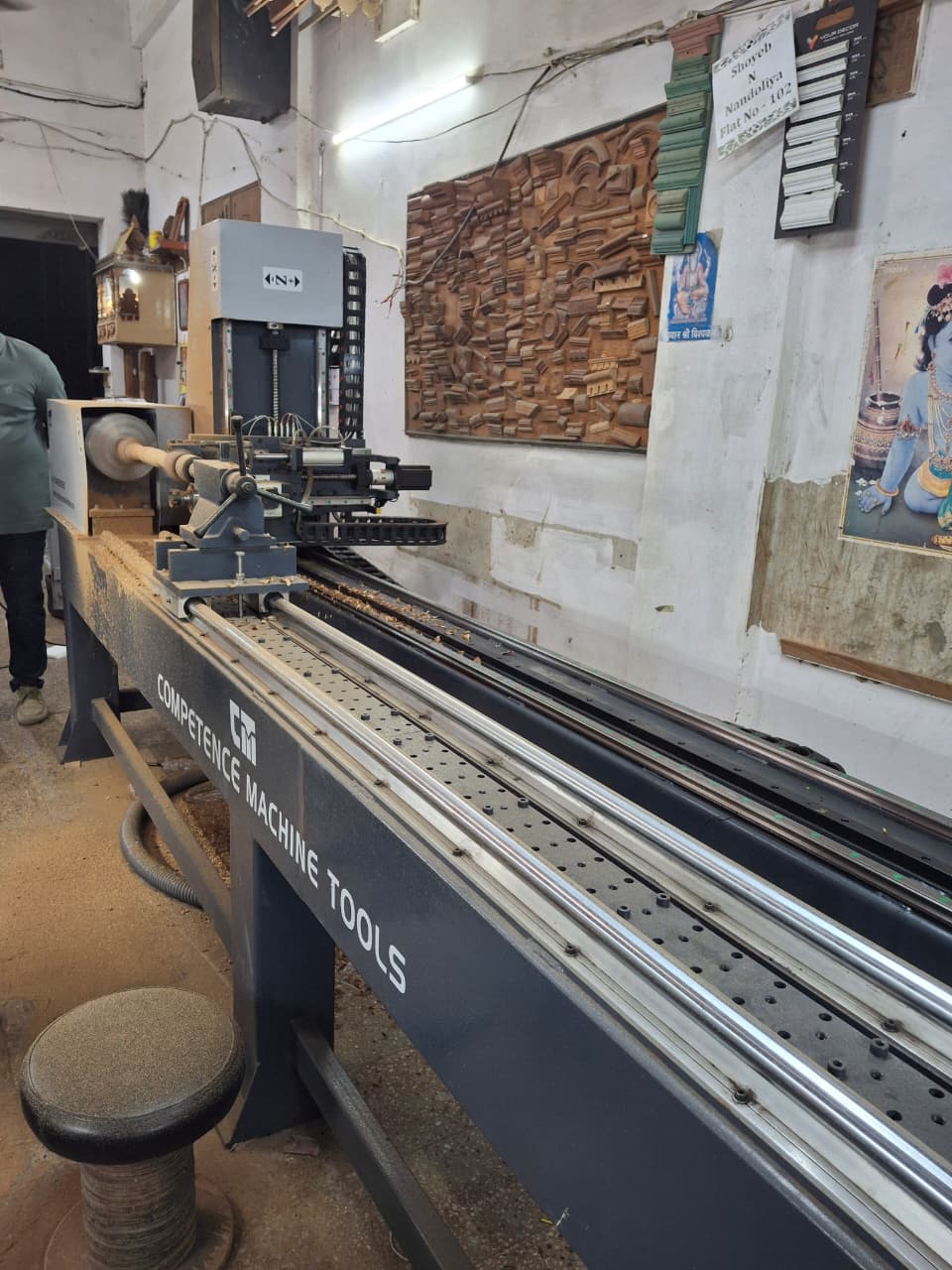

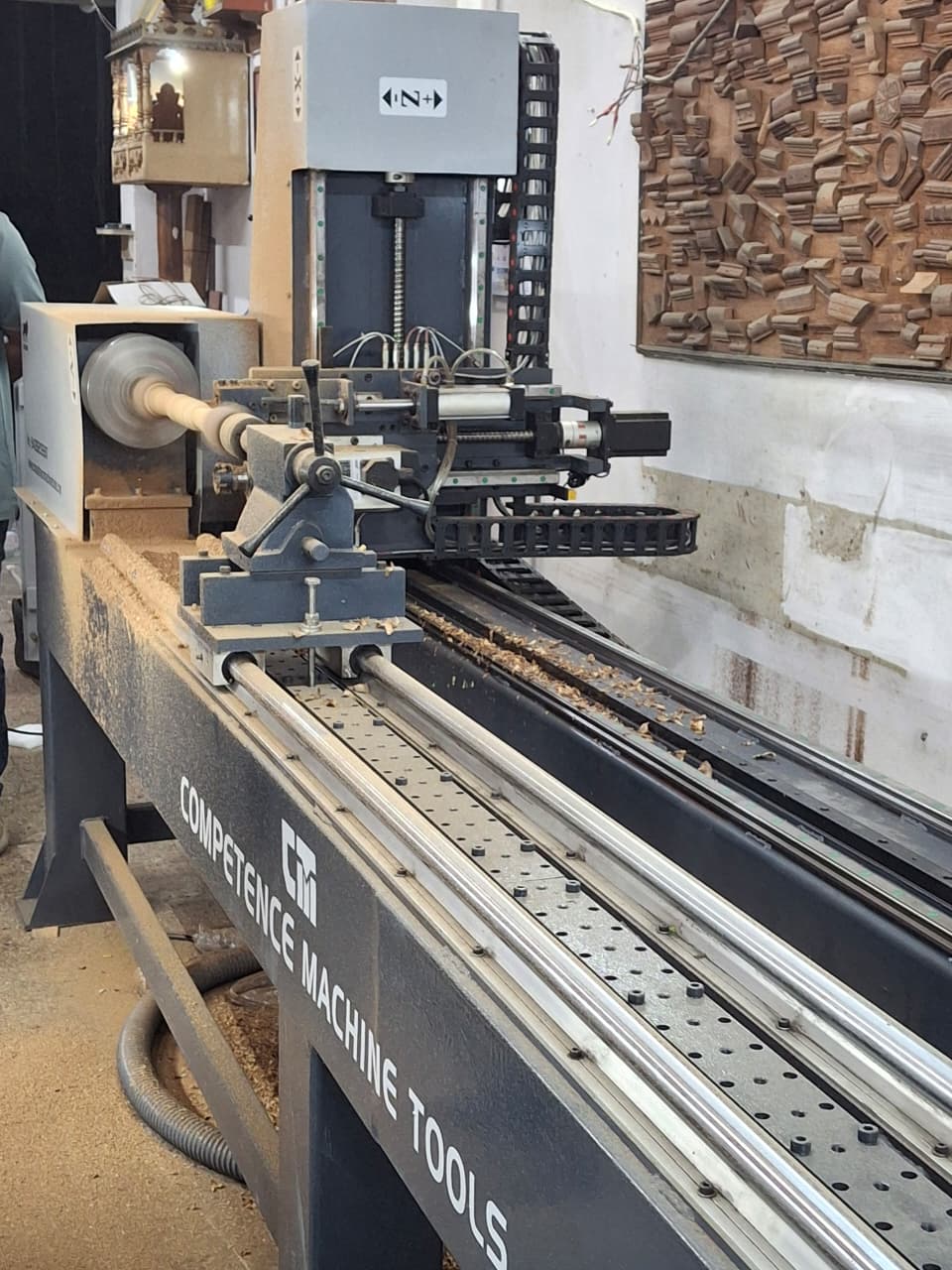

The Wood Rotary Machine from Competence Techno Engineers Pvt Ltd is purpose-built for precision carving, turning, and engraving on cylindrical wooden objects. With an integrated rotary axis, this advanced system allows full 360° machining on materials like teak, MDF, plywood, and hardwood—making it ideal for detailed column work, furniture legs, and decorative pieces.

Whether you're crafting intricate designs or large wooden structures, our wood rotary machine ensures flawless results with minimal setup time.

Manufacturer: Competence Techno Engineers Pvt. Ltd.

Technical Specifications (example – customizable)

Specification

Details

  • Working Area
  • X=1250/1830 mm
    Y=2500/3050/3650 mm
    Z=200 mm
  • Transmission
  • X=Helical Rack
    Y=Helical Rack
    Z= Ball Screw
  • Axis Motor
  • Stepper / Easy / Servo / Servo
  • Drive System
  • Belt Pully / Planetary Gear box
  • Linear Guide Rail
  • 25 mm LM Guide
  • Spindle Type
  • 3.5/4.5/6 kw (Air cooled)
    3.2/5.5/7.5 kw (water cooled)
  • Spindle RPM
  • 18000 to 24000
  • Max Travel Speed
  • 30000 mm/min
  • Machine Accuracy
  • 100 micron
  • CNC Controllers
  • DSP
  • Working Command
  • G-CODE
  • Lubrication
  • Auto / Manual

    • Key Features

    Built-in rotary axis for complete cylindrical wood carving

    Strong MS steel body structure for durability and stability

    High-speed spindle suitable for soft and hard wood

    Compatible with G-code and most CAM software

    Precision carving for 2D, 3D, and relief rotary jobs

    DSP controller with user-friendly interface

    Customizable size and head configurations available

    Applications

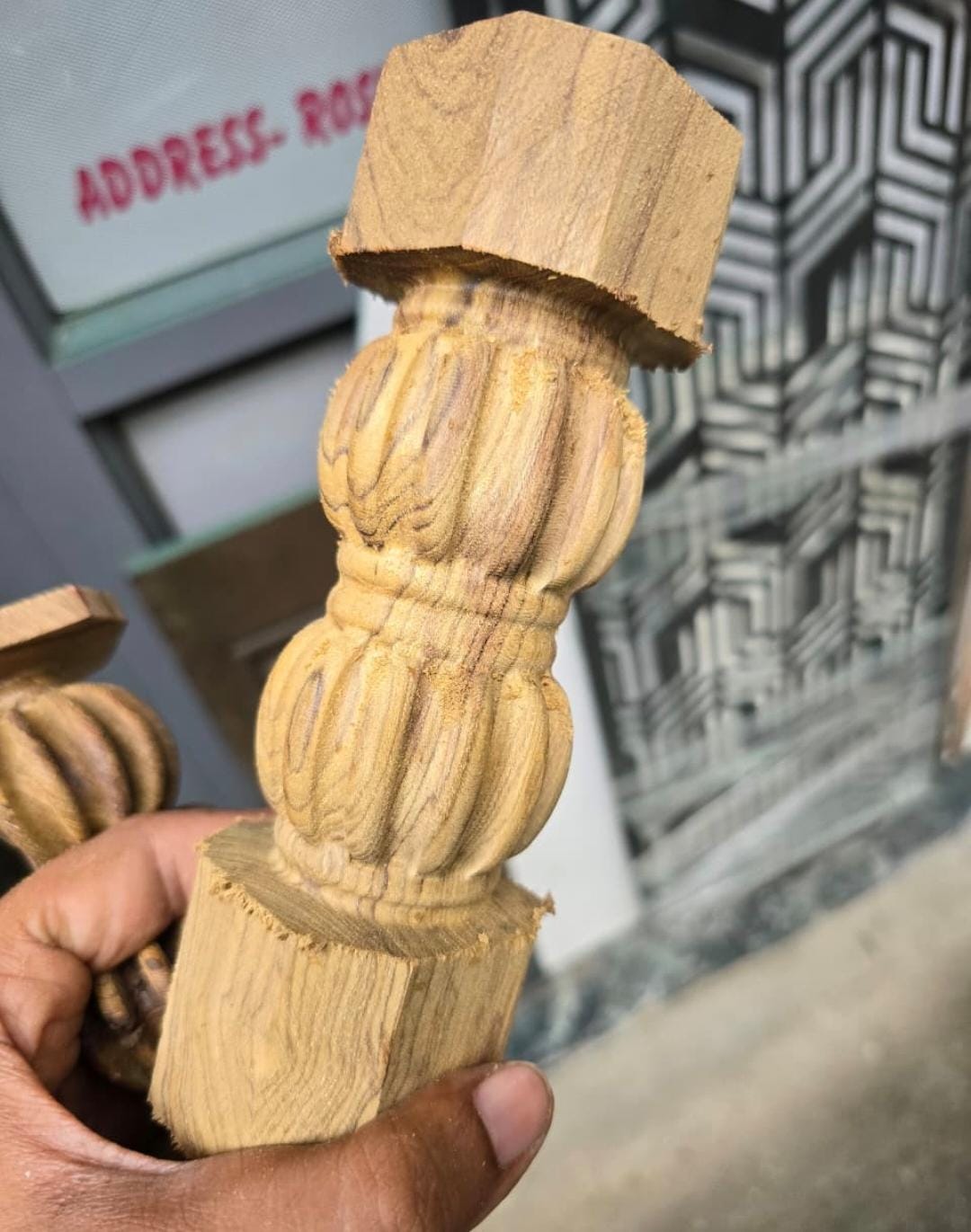

    Round column engraving and sculpting

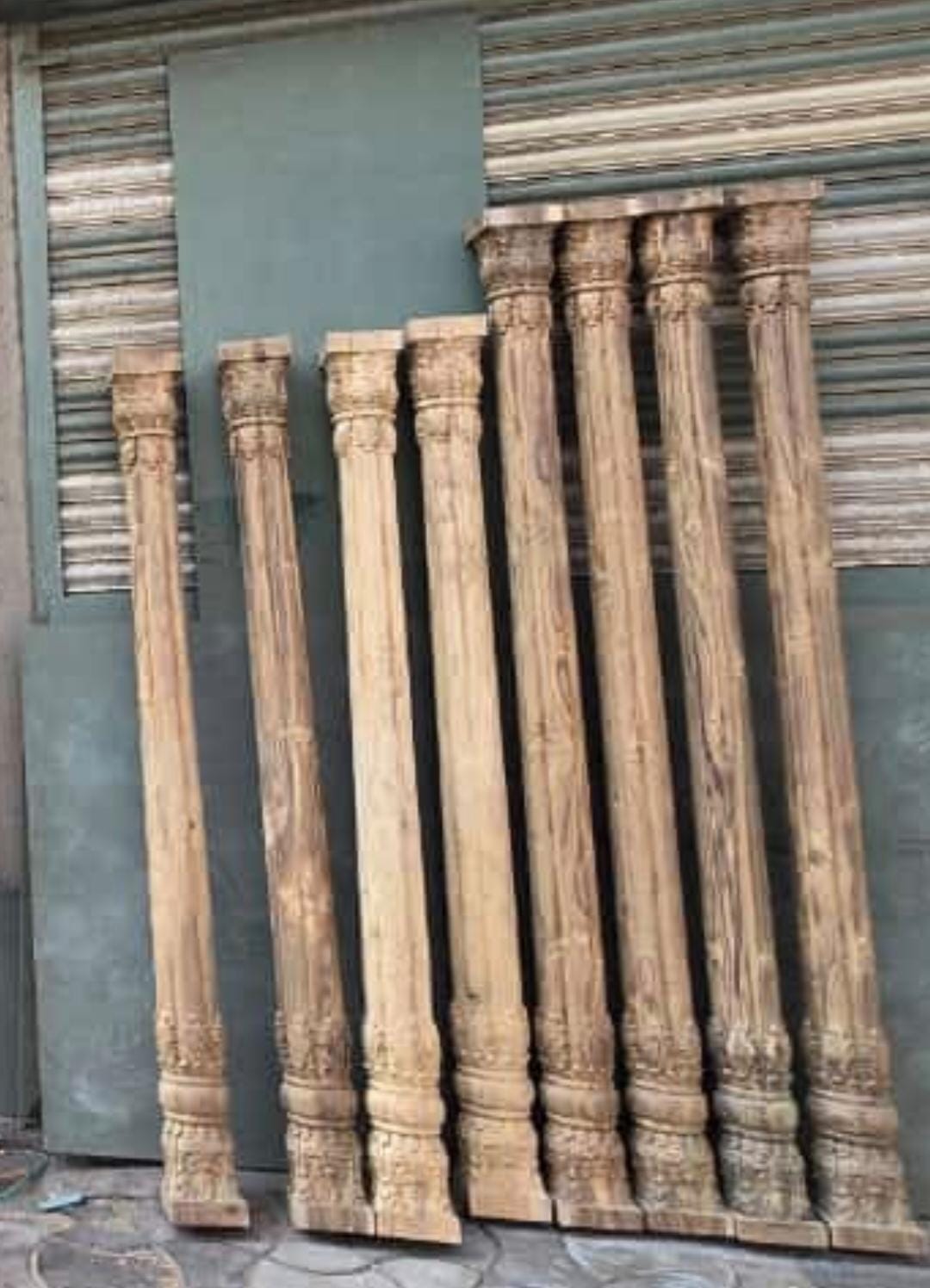

    Wooden pillar and furniture leg making

    Artistic and 3D cylindrical carving

    Decorative mandir and baluster production

    Custom wood art and religious items

    Choose Competence Techno Engineers Pvt Ltd for robust, high-performance wood rotary machines designed to elevate your woodworking capabilities. Contact us now for pricing, customization, and demo options.
