CNC Vaccume Table Wood Router Machine

Home / CNC Wood Router Machine /

CNC Vaccume Table Wood Router Machine

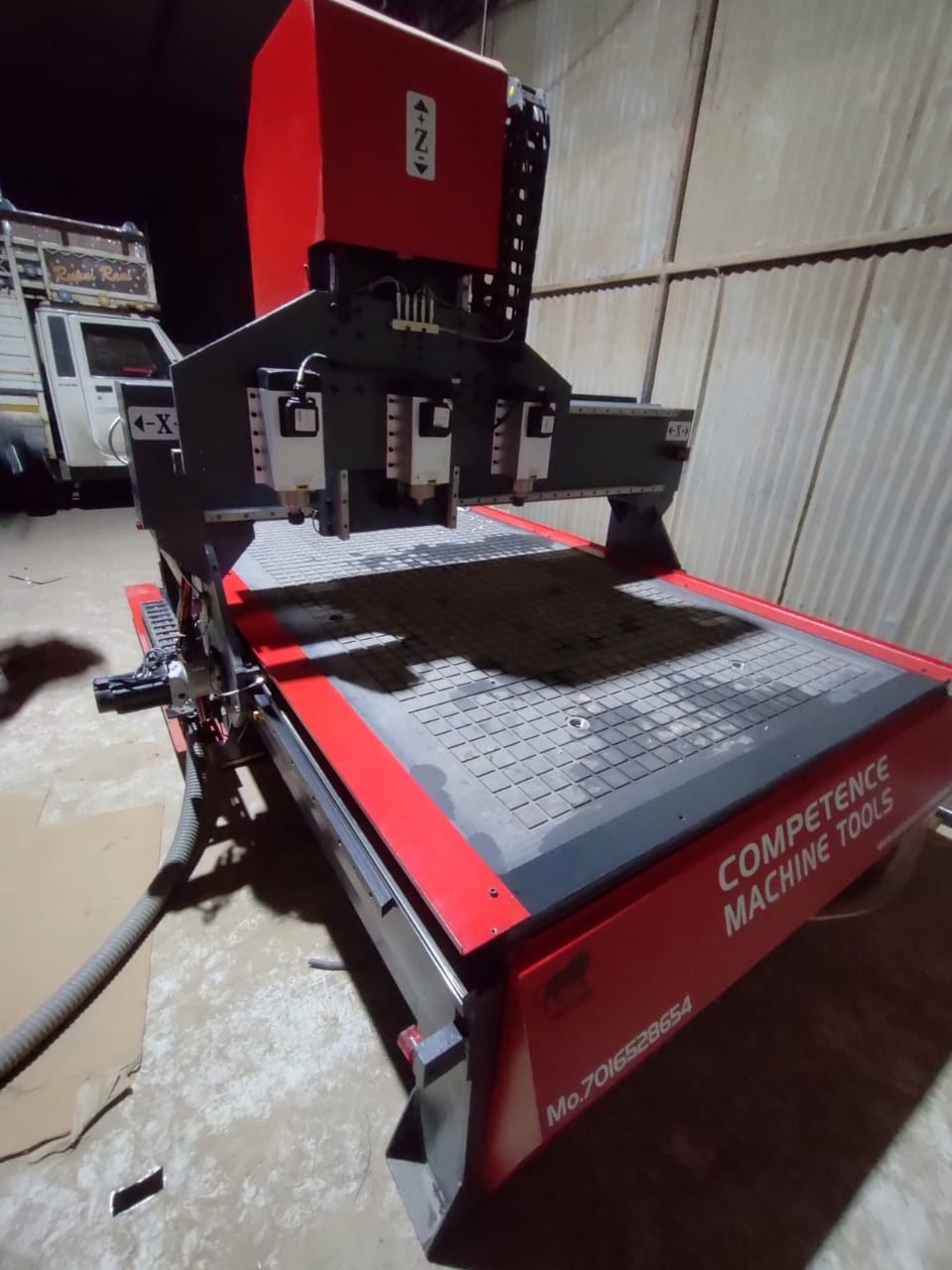

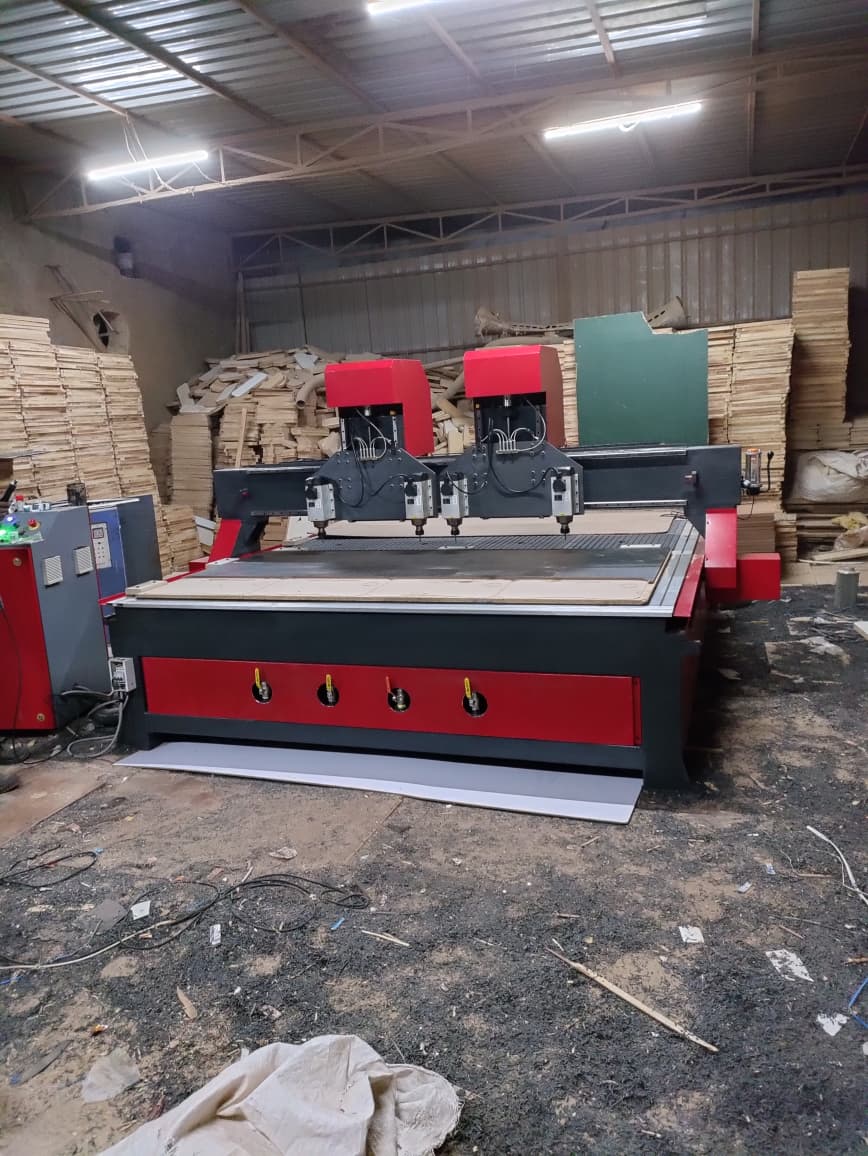

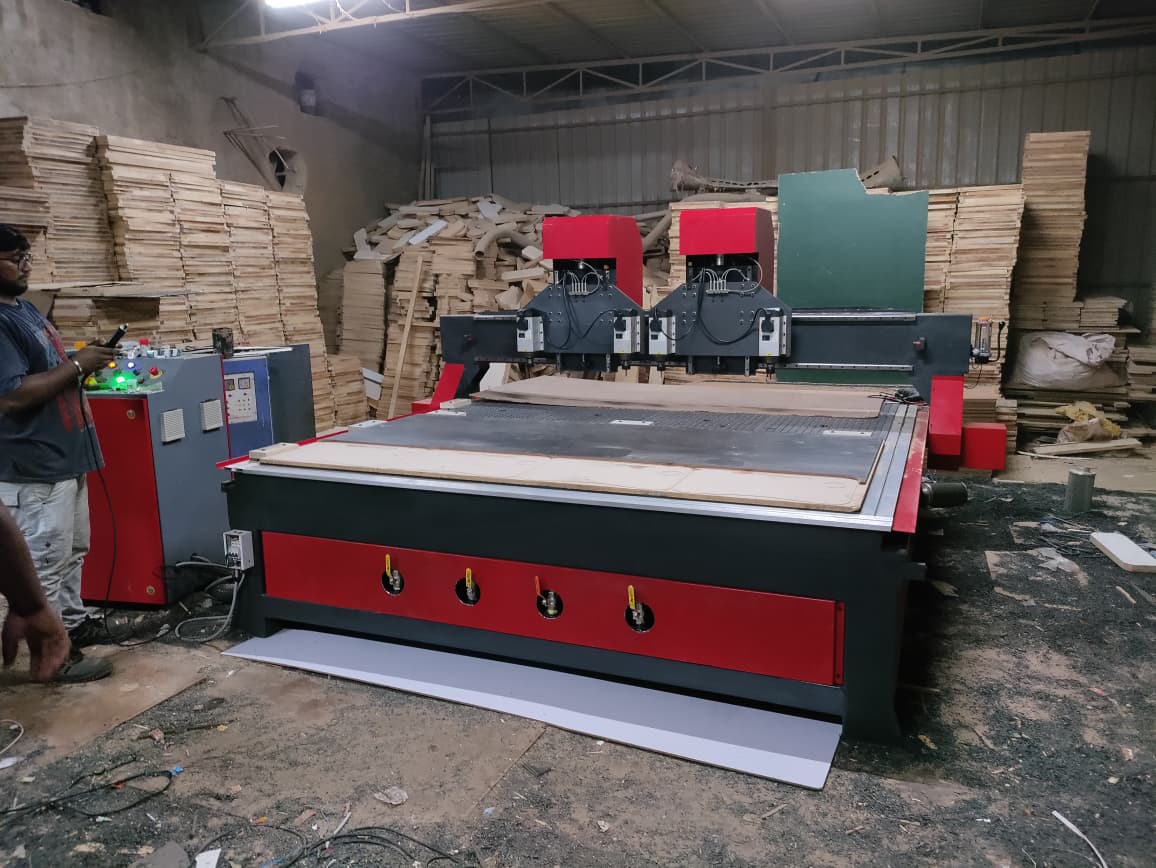

CNC Vaccume Table Wood Router Machine

Vacuum Wood Router Machine is designed for precision cutting, engraving, and shaping of wood, MDF, PVC, and composite materials. Integrated with a powerful vacuum hold-down table, it securely clamps materials during high-speed operations—ensuring accuracy, safety, and efficiency.

This CNC vacuum table router machine is ideal for signage makers, modular furniture manufacturers, and panel processing units where speed, consistency, and clean finishes matter.

Manufacturer: Competence Techno Engineers Pvt. Ltd.

Technical Specifications

Specification

Details

  • Working Area
  • X=1250/1830 mm
    Y=2500/3050/3650 mm
    Z=200 mm
  • Transmission
  • X=Helical Rack
    Y=Helical Rack
    Z= Ball Screw
  • Axis Motor
  • Stepper / Easy / Servo / Servo
  • Drive System
  • Belt Pully / Planetary Gear box
  • Linear Guide Rail
  • 25 mm LM Guide

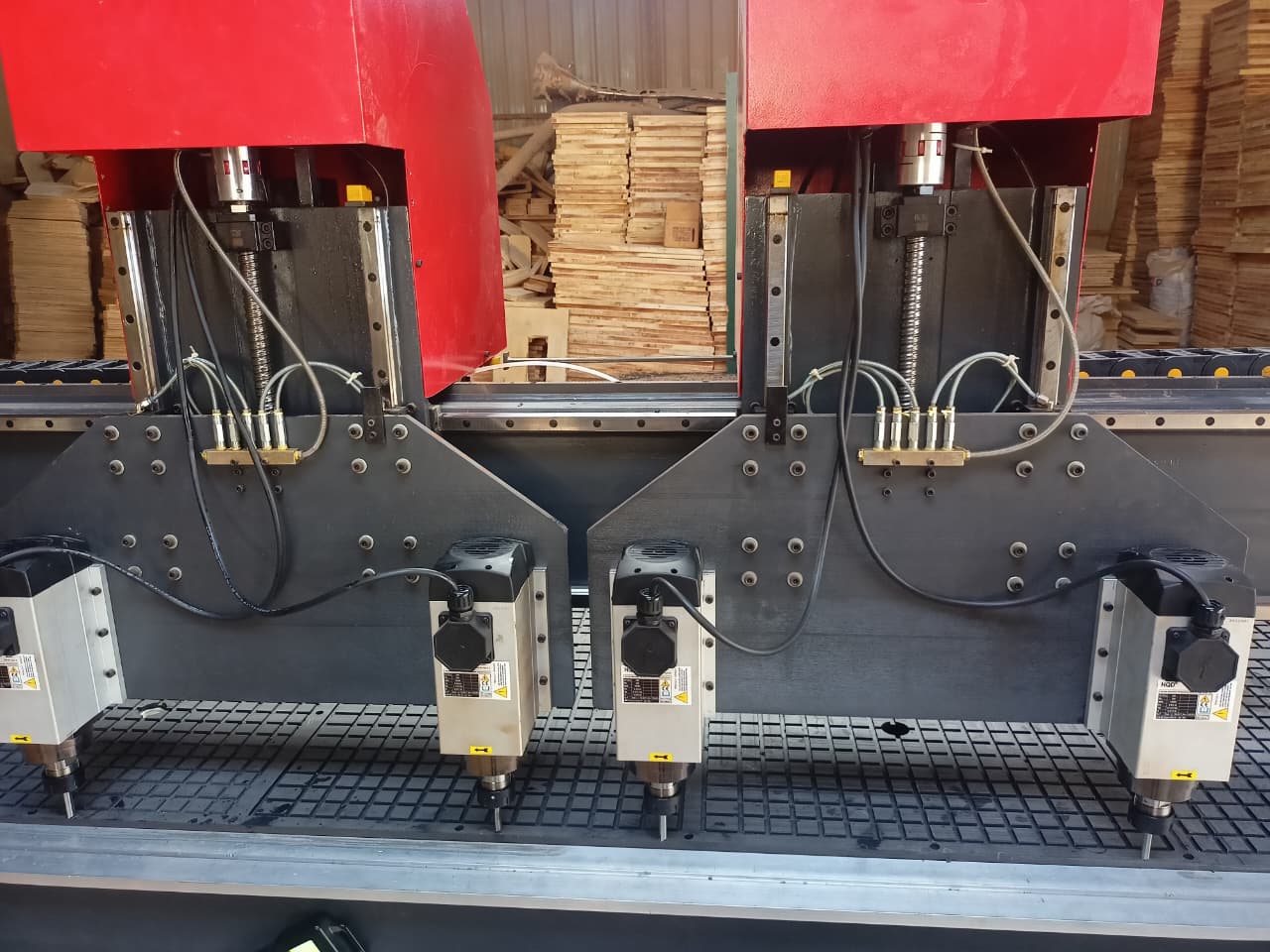

  • Spindle Type
  • 3.5/4.5/6 kw (Air cooled)
    3.2/5.5/7.5 kw (water cooled)
  • Spindle RPM
  • 18000 to 24000
  • Max Travel Speed
  • 30000 mm/min
  • Machine Accuracy
  • 100 micron
  • CNC Controllers
  • DSP
  • Working Command
  • G-CODE
  • Lubrication
  • Auto / Manual

    • Key Features

    Built-in vacuum table for firm material hold-down

    No mechanical clamping required—faster loading/unloading

    Suitable for large sheet cutting and detailed engraving

    Compatible with MDF, plywood, acrylic, PVC, and soft metals

    Heavy-duty MS frame for vibration-free performance

    G-code compatible CNC controller

    Optional tool change and dust collection system

    Applications

    Modular furniture panel routing

    Decorative woodworking and cabinetry

    Signboard engraving and lettering

    Composite and foam board cutting

    Bulk sheet material processing

    Get precision with zero slippage using our CNC vacuum table wood router machine. Contact Competence Techno Engineers Pvt Ltd for customized solutions, pricing, and on-site installation support.
