CNC Tubesheet Drilling Machine

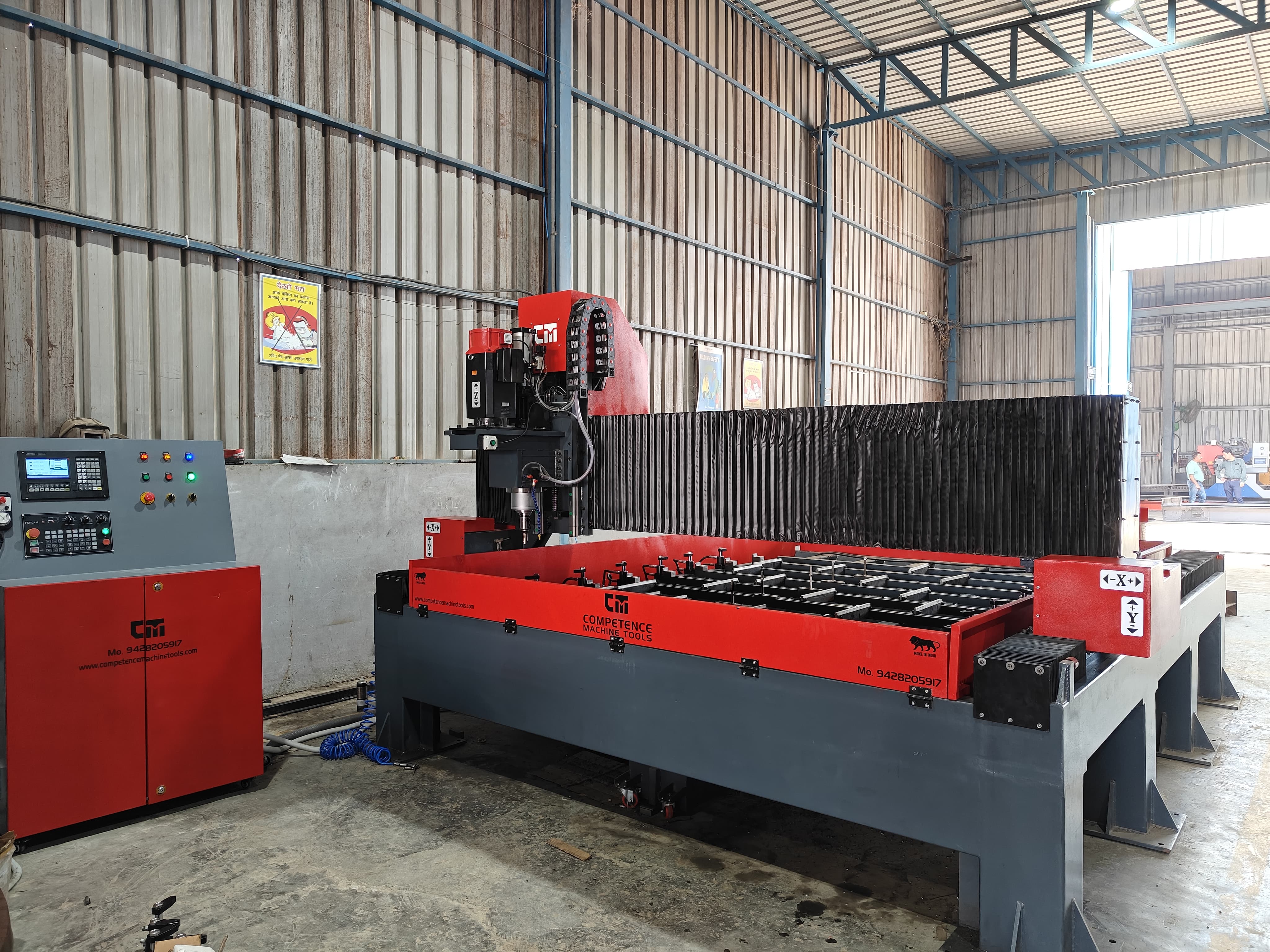

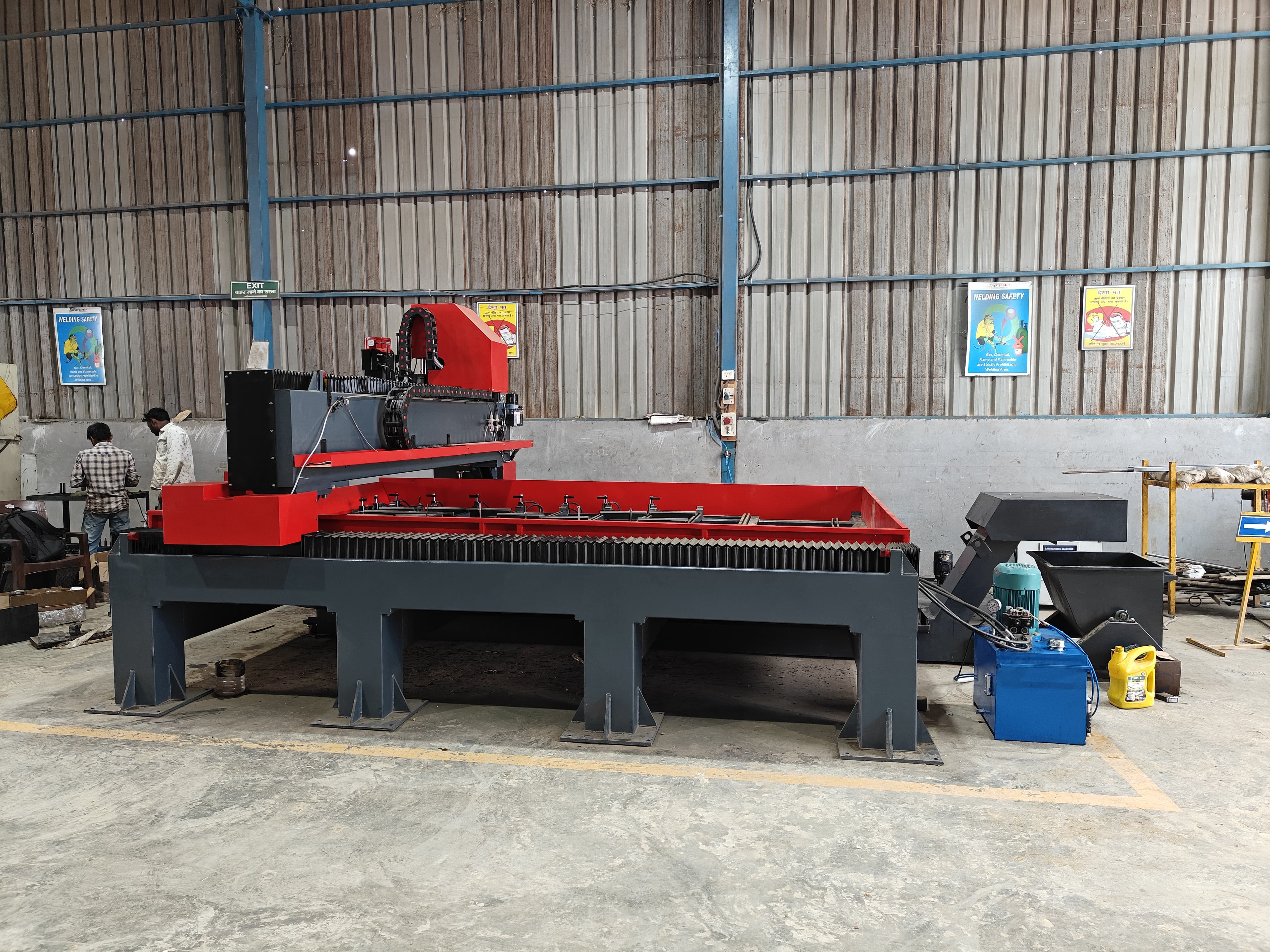

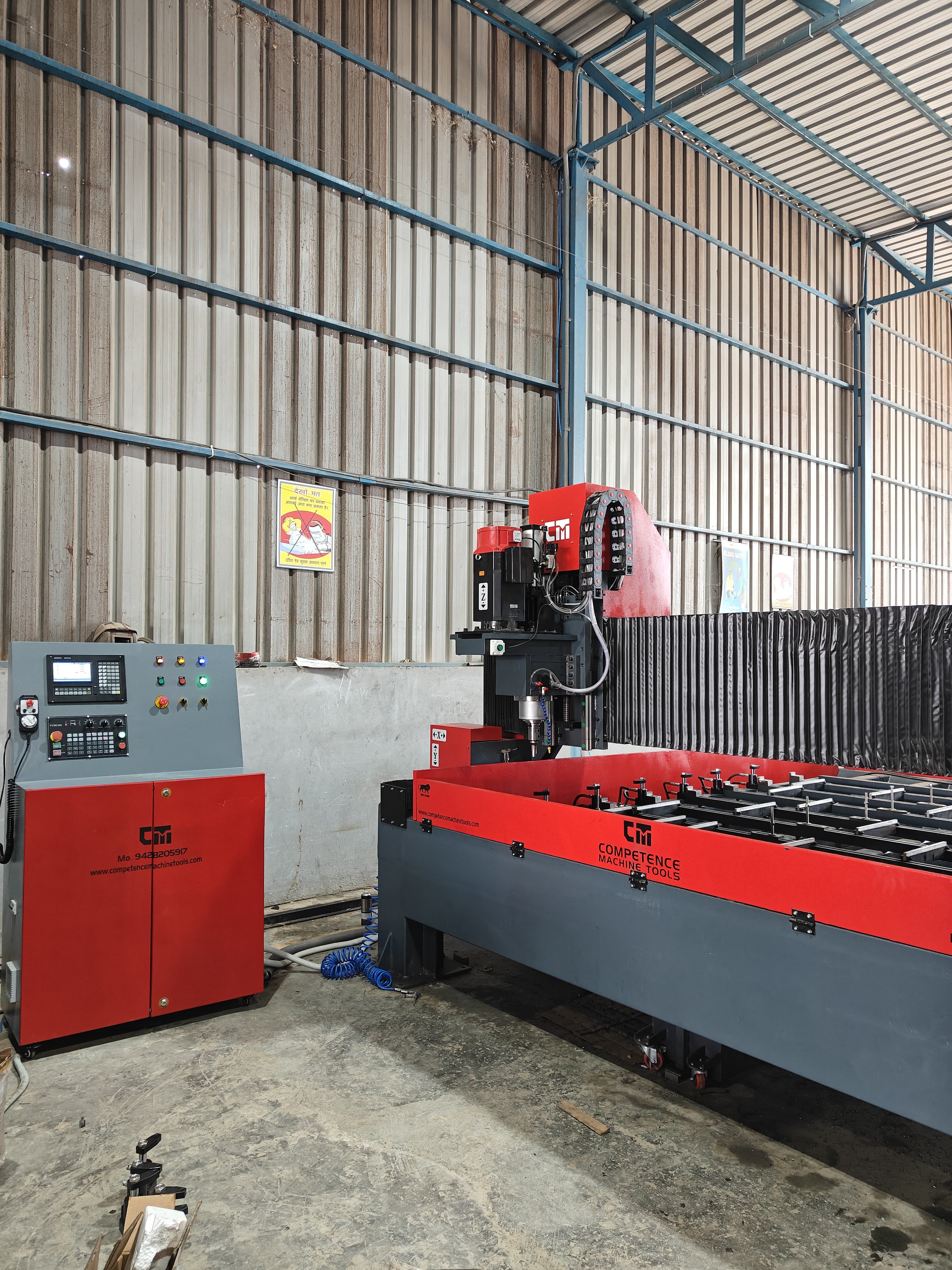

CNC Tube Sheet Drilling Machine

Competence Techno Engineers Pvt Ltd presents a state-of-the-art Tube Sheet Drilling Machine designed for precision, durability, and high-performance output. Ideal for heavy-duty tube sheet and metal plate drilling applications, this advanced machine meets the demands of industries like boiler manufacturing, heat exchangers, power plants, petrochemicals, and shipbuilding.

Manufacturer: Competence Techno Engineers Pvt. Ltd.

Technical Specifications

Feature

Specification

  • Working Area
  • X=1500 / 2000 / 3000 mm
    Y=1500 / 2000 / 3000 mm
    Z=200 mm
  • Transmission
  • X=Helical Rack / Ball Screw
    Y=Helical Rack / Ball Screw
    Z=Ball Screw
  • Axis Motor
  • Servo
  • Drive System
  • Planetary Gear box
  • Linear Guide Rail
  • 45 / 55 mm LM Guide
  • Spindle Type
  • BT 40/50 CTS
  • Spindle RPM
  • 6000 rpm
  • Spindle Motor
  • 7.5 / 9 / 11 KW Servo motor
  • Machine Accuracy
  • 50 To 80 micron
  • CNC Controllers
  • ADTECH / MITSHUBISHI / equivalent
  • Working Command
  • G-CODE
  • Lubrication
  • Auto operated pump

    • Key Features

    High drilling accuracy and repeatability

    Robust fabricated structure for long operational life

    Efficient chip removal with standard chip conveyor

    Bellow covers on all axes for protection from debris

    G-code compatible for seamless CNC programming

    Applications

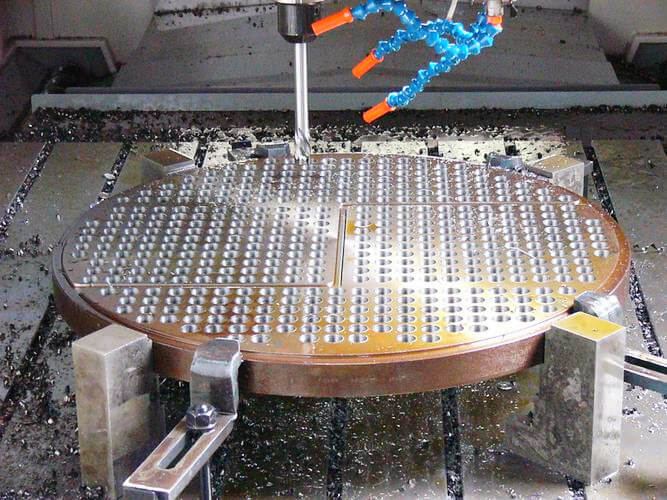

    This sheet metal drilling machine is ideal for tube sheets, baffle plates, flanges, and similar components where high precision and speed are critical. We are leading CNC Tube Sheet Drilling Machine Manufacturer in India, Competence Techno Engineers Pvt Ltd delivers cutting-edge CNC solutions with unmatched service support and technical excellence.
