CNC Plate Drilling Machine

CNC Plate Drilling Machine

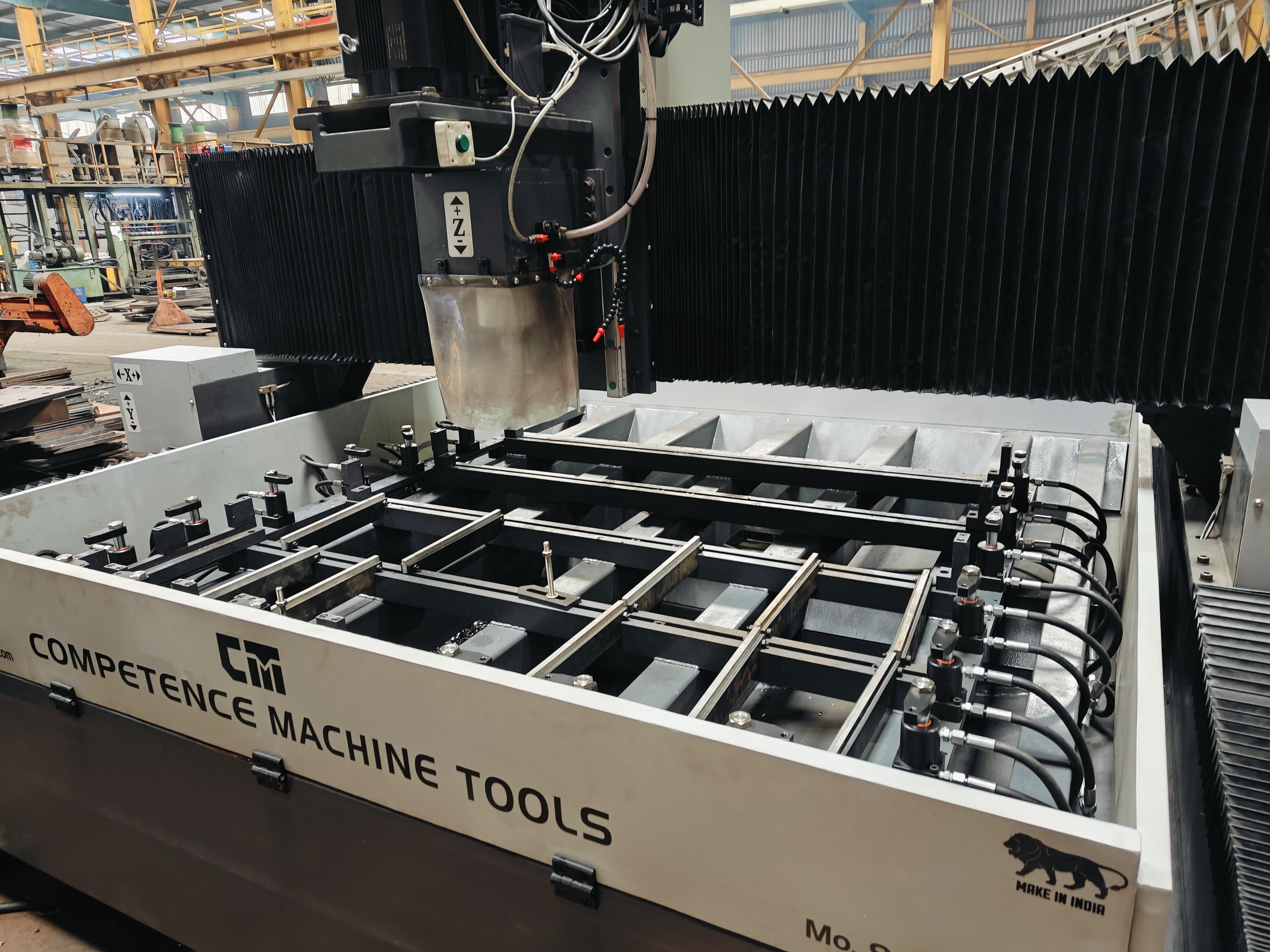

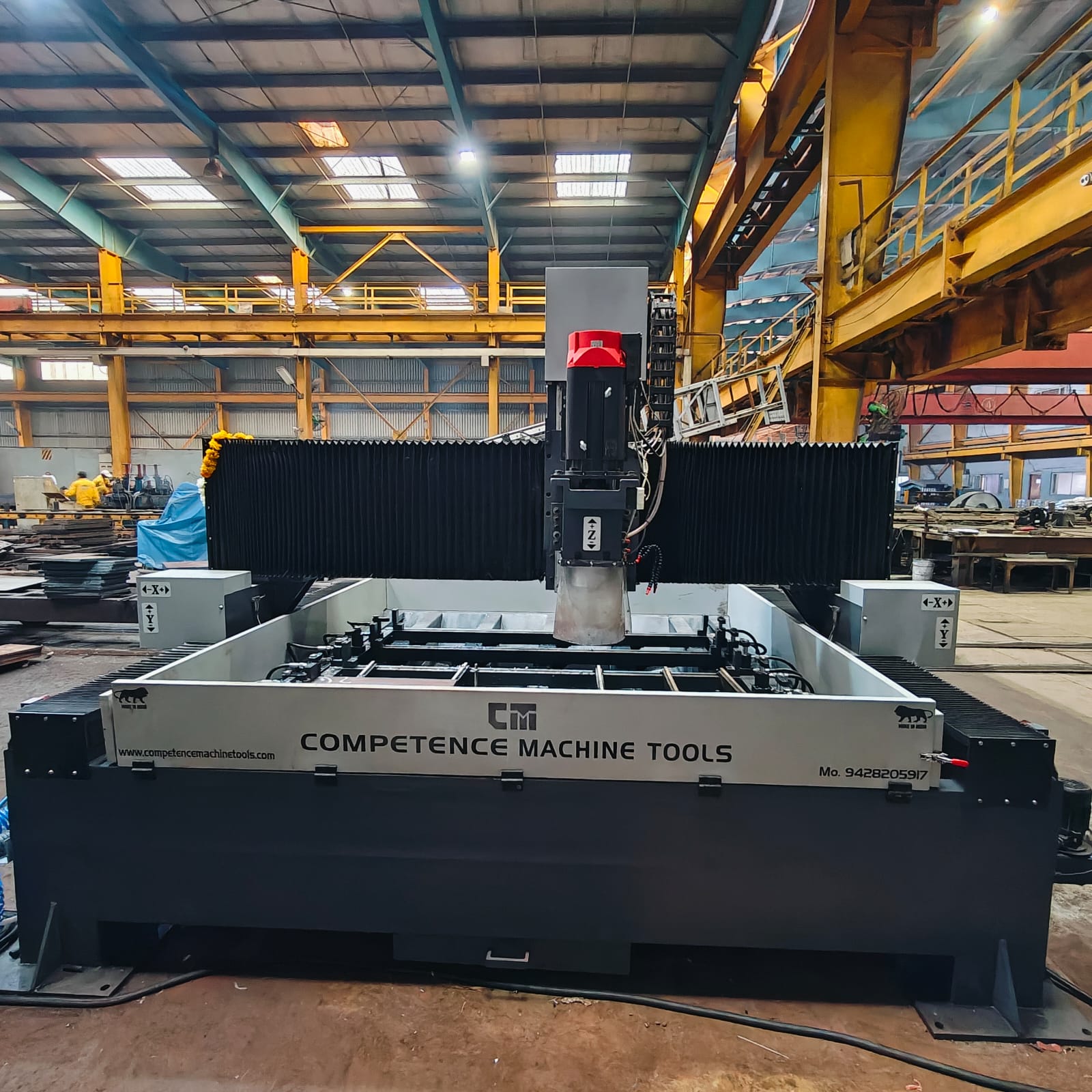

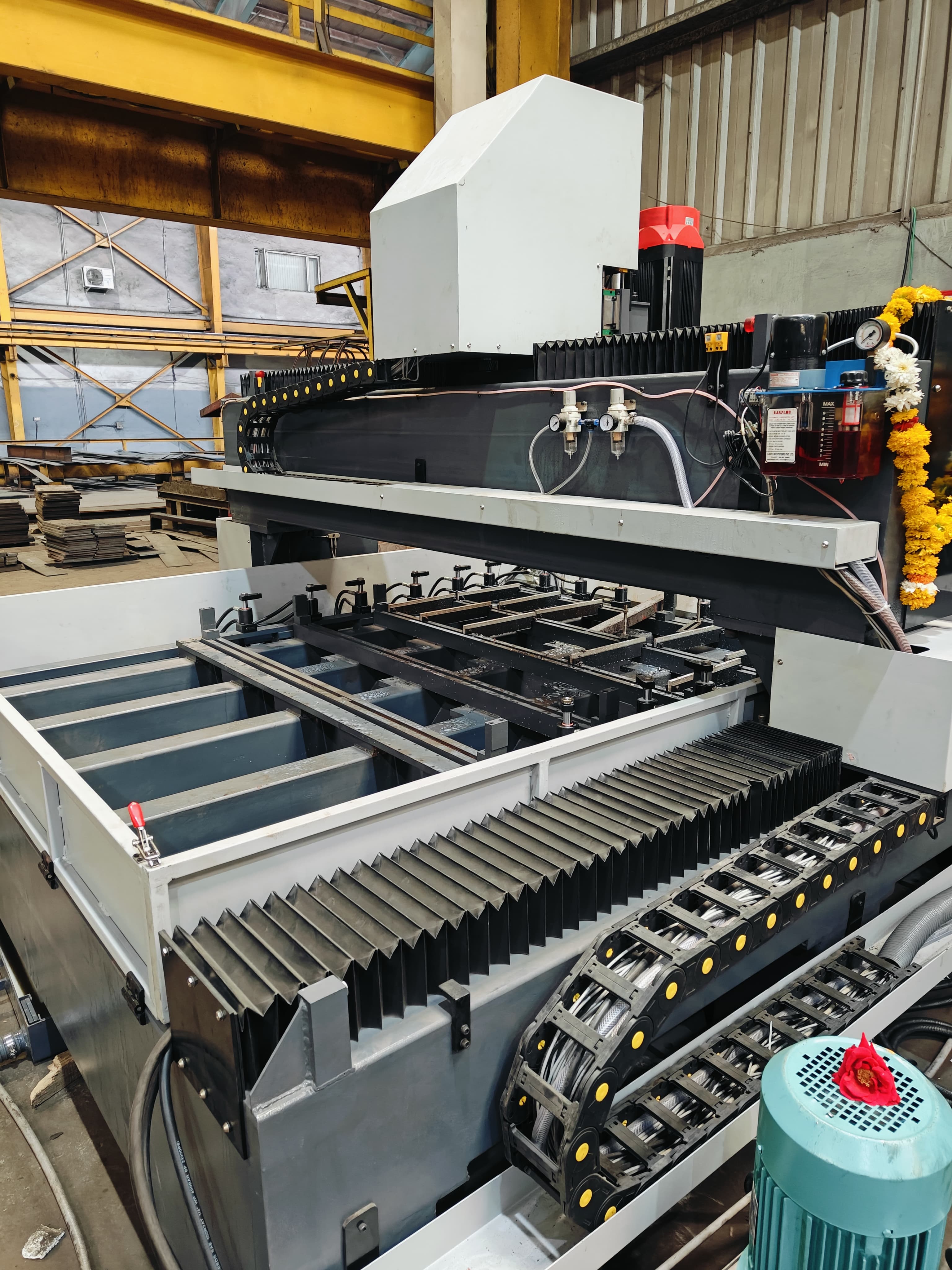

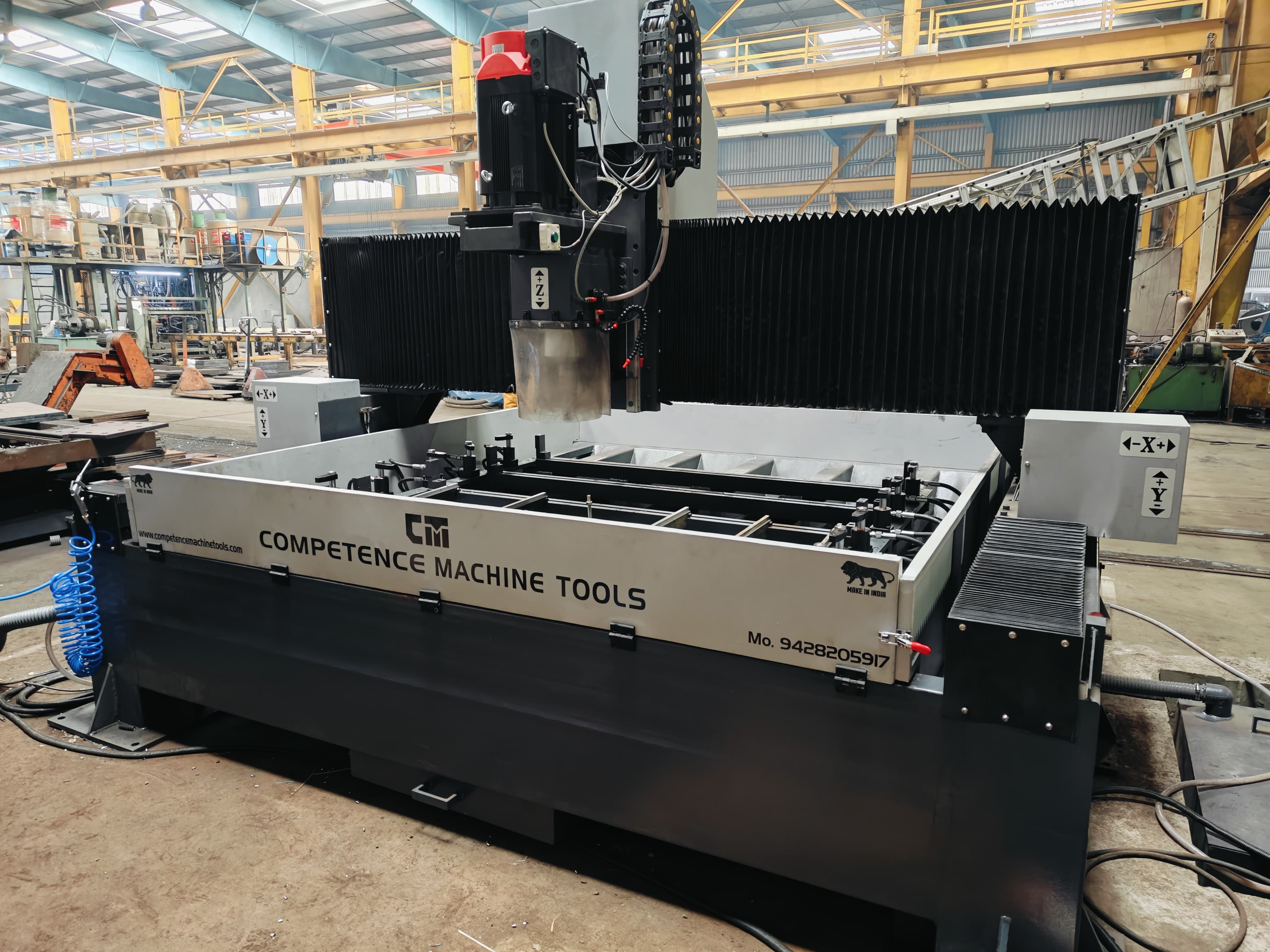

The CNC Plate Drilling Machine by Competence Techno Engineers Pvt Ltd is built to deliver high-speed, high-precision drilling for metal plates of various sizes and thicknesses. Designed to meet the rigorous demands of industries like construction, fabrication, railway, power generation, and heavy engineering, this machine offers automation, accuracy, and durability in one robust solution.

Manufacturer: Competence Techno Engineers Pvt. Ltd.

Technical Specifications

Feature

Specification

  • Working Area
  • X=1500 / 2000 / 3000 mm
    Y=1500 / 2000 / 3000 mm
    Z=200 mm
  • Transmission
  • X=Helical Rack / Ball Screw
    Y=Helical Rack / Ball Screw
    Z=Ball Screw
  • Axis Motor
  • Servo
  • Drive System
  • Planetary Gear box
  • Linear Guide Rail
  • 45 / 55 mm LM Guide
  • Spindle Type
  • BT 40/50 CTS
  • Spindle RPM
  • 6000 rpm
  • Spindle Motor
  • 7.5 / 9 / 11 KW Servo motor
  • Machine Accuracy
  • 50 To 80 micron
  • CNC Controllers
  • ADTECH / MITSHUBISHI / equivalent
  • Working Command
  • G-CODE
  • Lubrication
  • Auto operated pump
  • Key Features

    Precision drilling with accuracy up to 50–80 microns

    Sturdy MS steel fabricated structure for long-term durability

    Automatic lubrication system for consistent performance

    G-code programming compatibility for easy CNC operation

    High-speed spindle up to 6000 RPM for rapid drilling cycles

    Available with trusted CNC controllers like ADTECH or Mitsubishi

    Applications

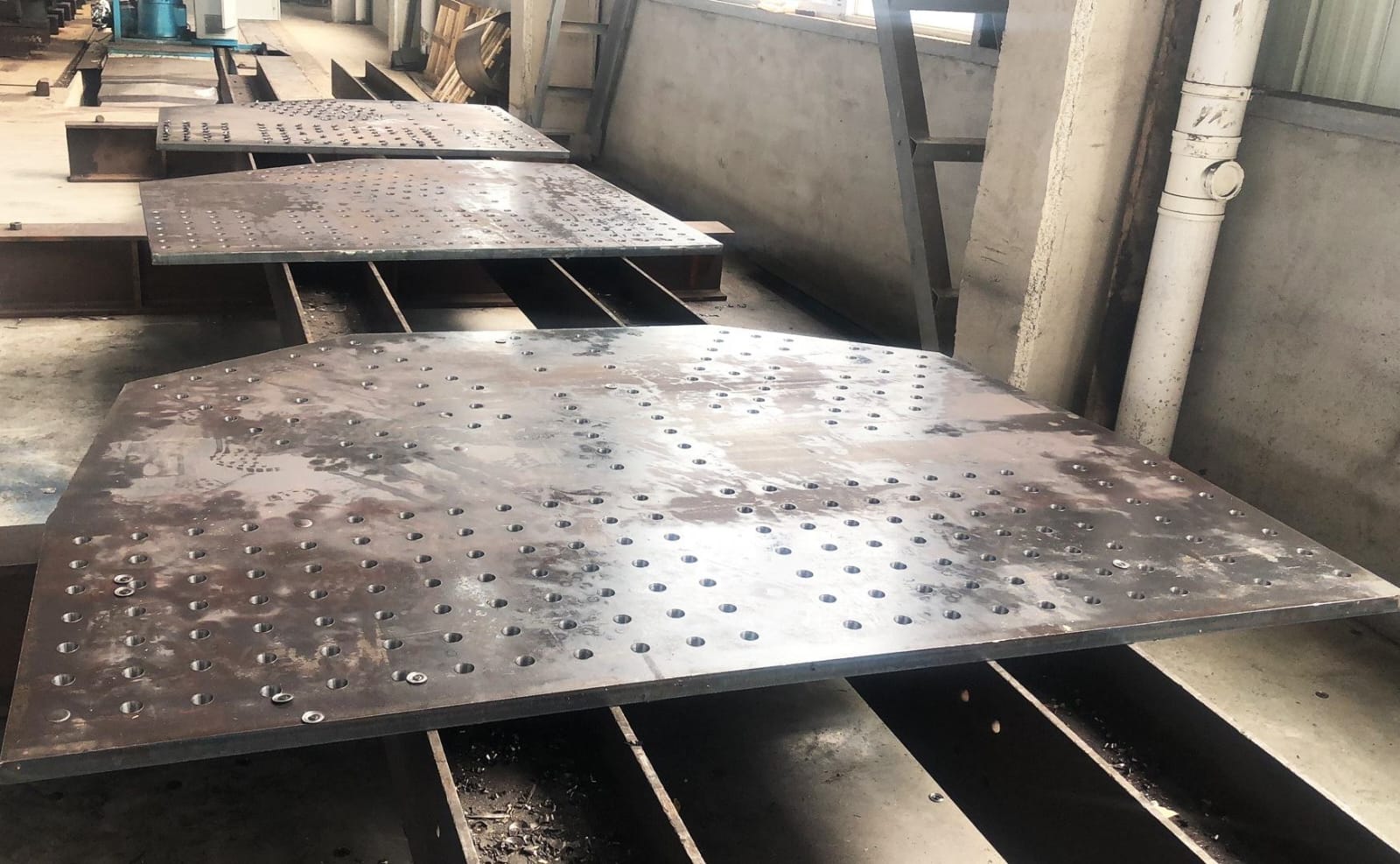

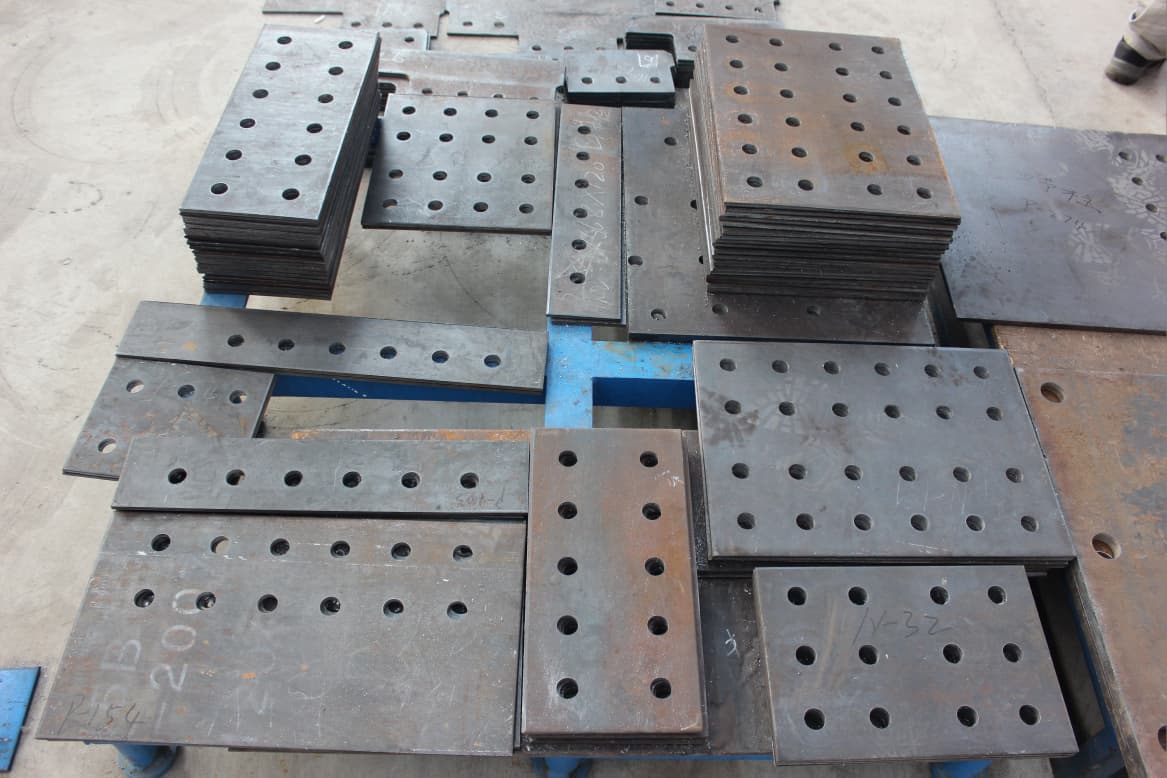

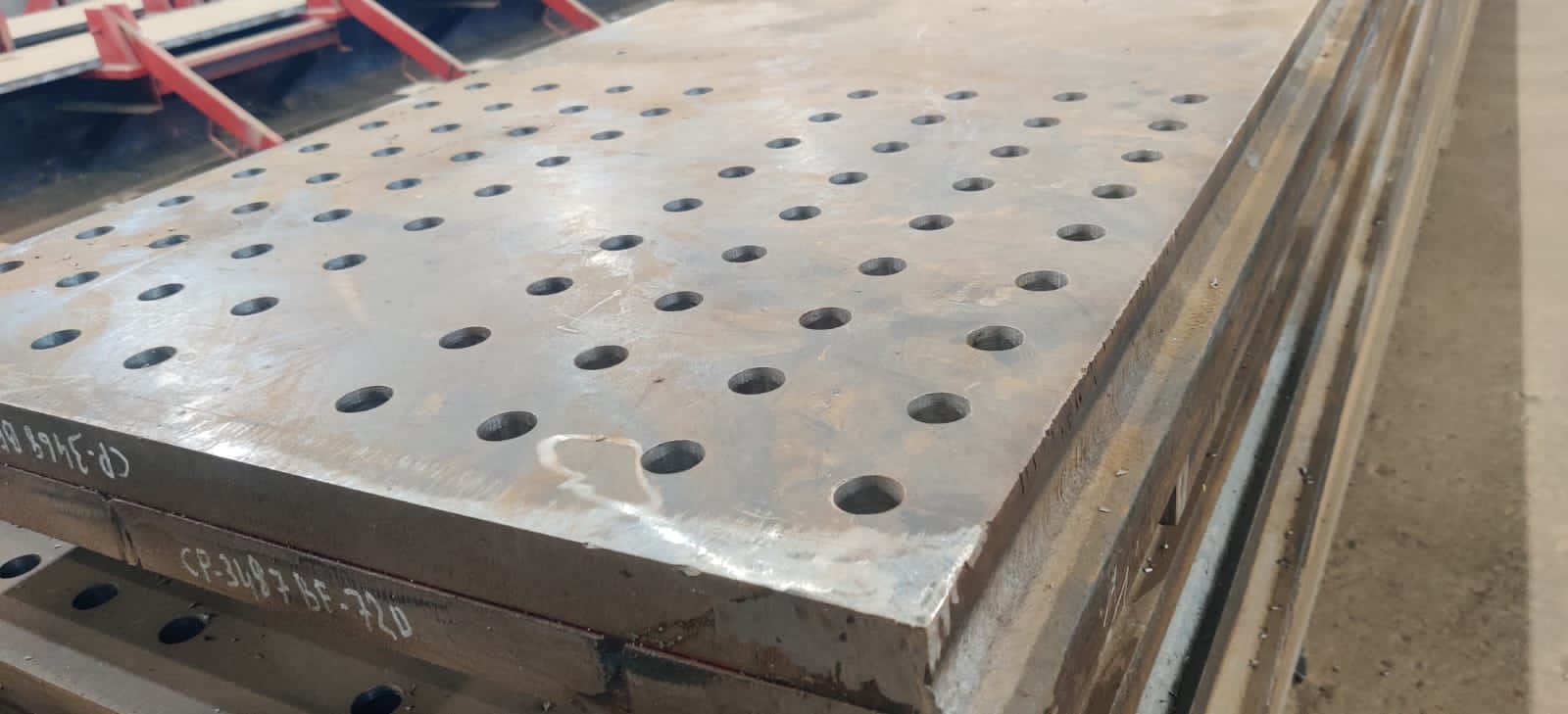

    Perfect for industries requiring high-performance plate drilling machines, including RDSO-approved CNC plate drilling for railway applications, boiler plate processing, structural steel, and shipbuilding components.

    As a reputed CNC Plate Drilling Machine Manufacturer, Competence Techno Engineers Pvt Ltd offers precision engineering, robust build quality, and top-tier after-sales support trusted by top Indian and global industries.
