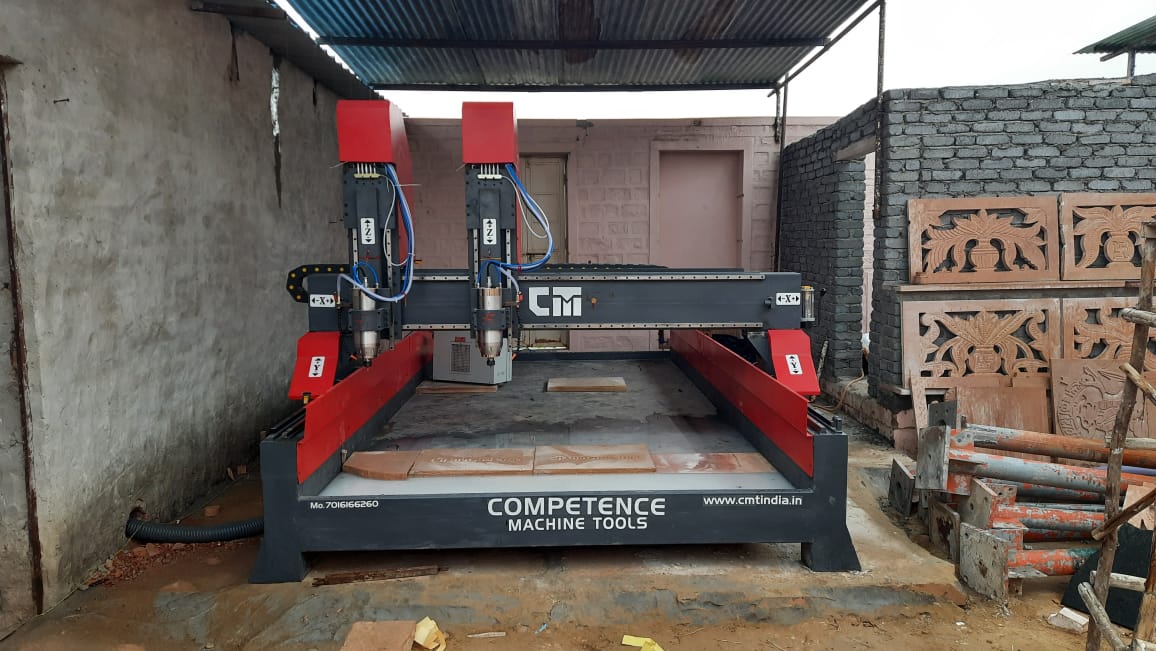

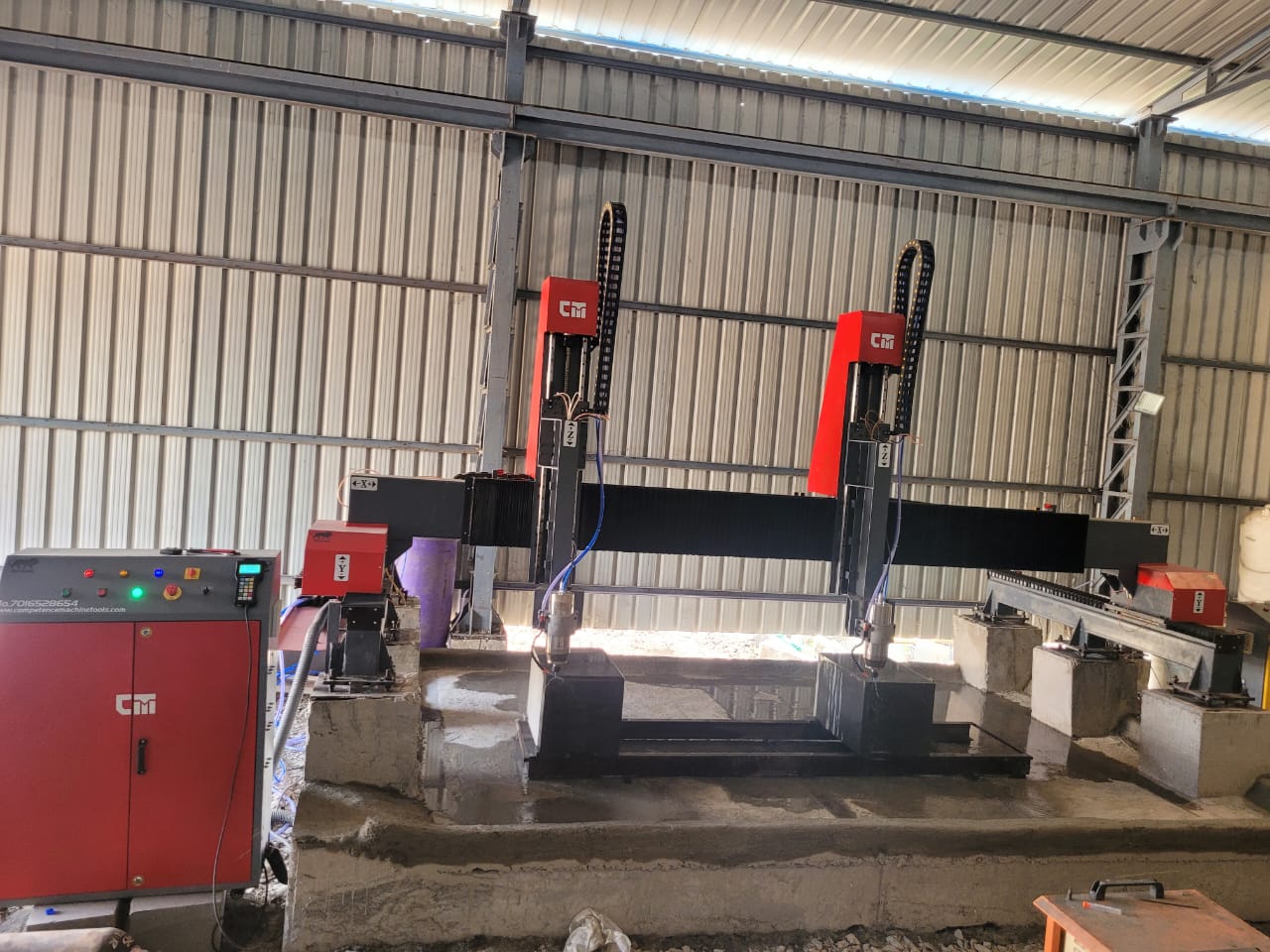

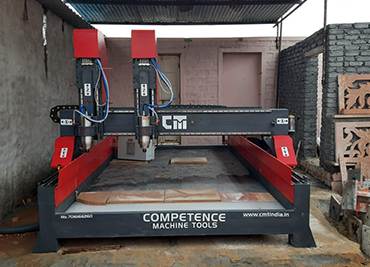

CNC Multi Head Stone Router Machine

Home / CNC Stone Router Machine /

CNC Multi Head Stone Router Machine

CNC Multi Head Stone Router Machine

The Multi Head Stone Router Machine is specially engineered for high-volume stone processing applications, enabling simultaneous engraving, cutting, and routing on multiple stone slabs. With multiple synchronized heads, this machine significantly reduces production time while maintaining precision and consistency.

Ideal for granite, marble, and other natural stone materials, it’s widely used in the manufacturing of temple structures, architectural elements, stone signages, and decorative stone panels.

Manufacturer: Competence Techno Engineers Pvt. Ltd.

Technical Specifications (customizable per requirement)

Specification

Details

  • Working Area
  • X-1530/1830 mm
    Y-3050/3650 mm
    Z-300/600/900 mm
  • Transmission
  • X-1.25M Helical Rack
    Y-1.25M Helical Rack
    Z- 25*10mm Pitch Ball Screw
  • Axis Motor
  • Easy Servo / Servo
  • Drive System
  • Planetary Gear box
  • Linear Guide Rail
  • 25 mm LM Guide
  • Spindle Type
  • 5.5 kw(Water cooled)
  • Spindle RPM
  • 24000
  • Max Travel Speed
  • 30000 mm/min
  • Machine Accuracy
  • 100 micron
  • CNC controllers
  • DSP WEIHONG NK 105
  • Working Command
  • G-CODE
  • Lubrication
  • Auto / Manual

    • Key Features

    Multiple heads for simultaneous and mirrored operations

    Rugged MS steel body for vibration-free performance

    Supports engraving, 3D carving, and surface milling

    High-speed water-cooled spindles for continuous cutting

    DSP controller with offline G-code operation

    Optional rotary axis for column and circular carving

    Applications

    Stone temple architecture and sculptures

    Multi-panel wall art and stone carvings

    Customized stone furniture and countertops

    Mass production of nameplates and inlays

    Decorative and religious stone engraving

    Maximize productivity and precision with the CNC Multi Head Stone Router Machine from Competence Techno Engineers Pvt Ltd. Contact us now for customization options, machine demos, and pricing.
