CNC Metal Engraving Machine

CNC Metal Engraving Machine

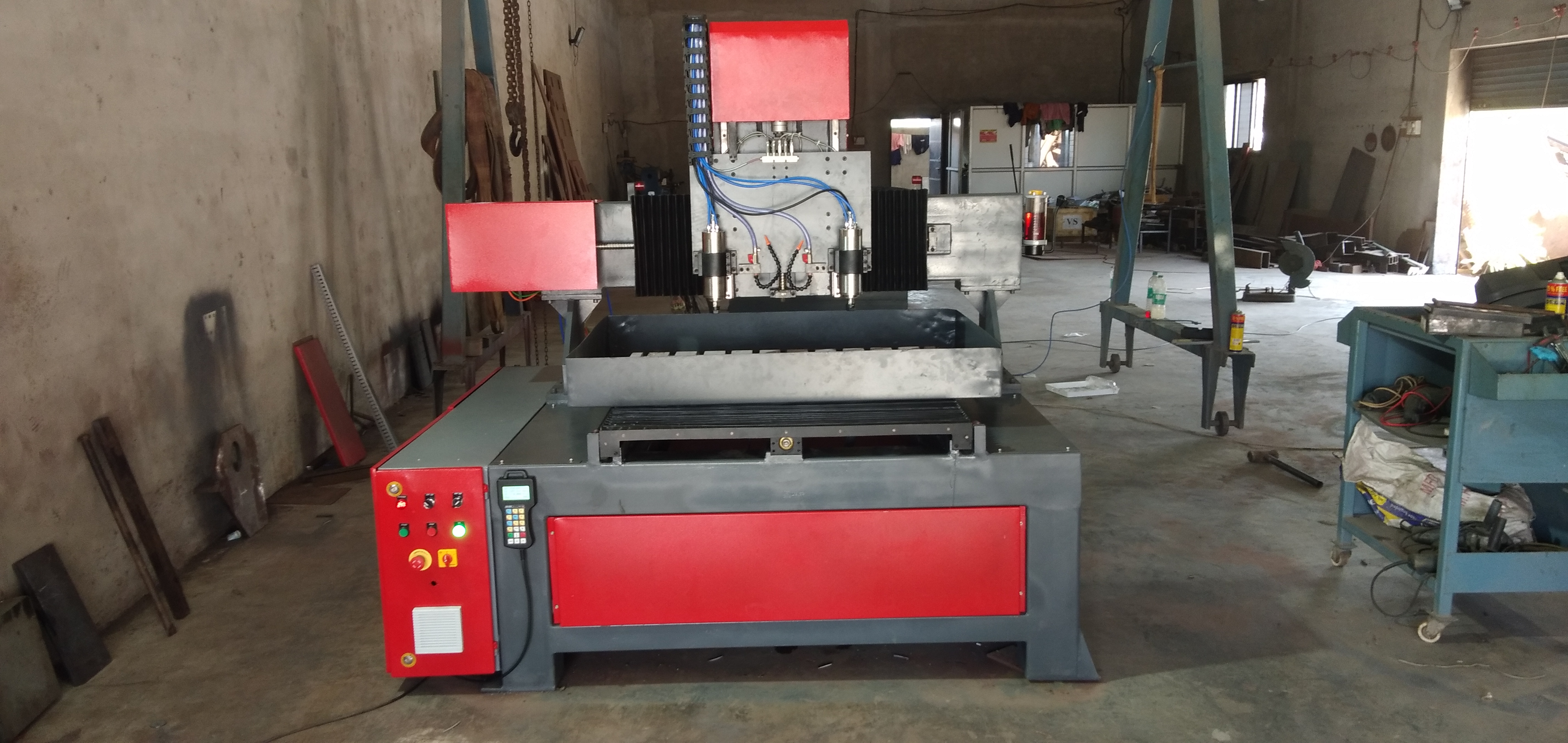

The Metal Engraving Machine from Competence Techno Engineers Pvt Ltd is a precision-driven solution for high-speed engraving on metal surfaces such as aluminum, brass, copper, stainless steel, and mild steel. Built with industrial-grade components, this machine ensures unmatched accuracy, repeatability, and durability for both small batch and high-volume production.

Whether you're creating nameplates, branding plates, molds, or fine art, this CNC metal engraving machine delivers clean results with minimal wear.

Manufacturer: Competence Techno Engineers Pvt. Ltd.

Technical Specifications (customizable)

Specification

Details

  • Working Area
  • X-300/400/600 mm
    Y-300/400/600 mm
    Z-200 mm
  • Transmission
  • X-1.25M Helical Rack
    Y-1.25M Helical Rack
    Z- 25*10mm Pitch Ball Screw
  • Axis Motor
  • Stepper / Easy Servo / Servo
  • Drive System
  • Belt Pully / Planetary Gear box
  • Linear Guide Rail
  • 25 mm LM Guide
  • Spindle Type
  • 3.2/5.5 kw(Water cooled)
  • Spindle RPM
  • 18000 to 24000
  • Max Travel Speed
  • 30000 mm/min
  • Machine Accurcy
  • 100 micron
  • CNC Controllers
  • DSP WEIHONG NK 105
  • Working Command
  • G-CODE
  • Lubrication
  • Auto / Manual

    • Key Features

    Rigid MS steel body structure for stable operation

    High-speed spindle suitable for detailed engraving on hard metals

    Water-cooled spindle ensures continuous and reliable performance

    Smooth linear motion and ball screw transmission

    Easy-to-operate DSP controller with G-code support

    Ideal for fine engraving, deep marking, and 2D/3D patterns

    Compatible with various design software formats

    Applications

    Industrial and corporate nameplates

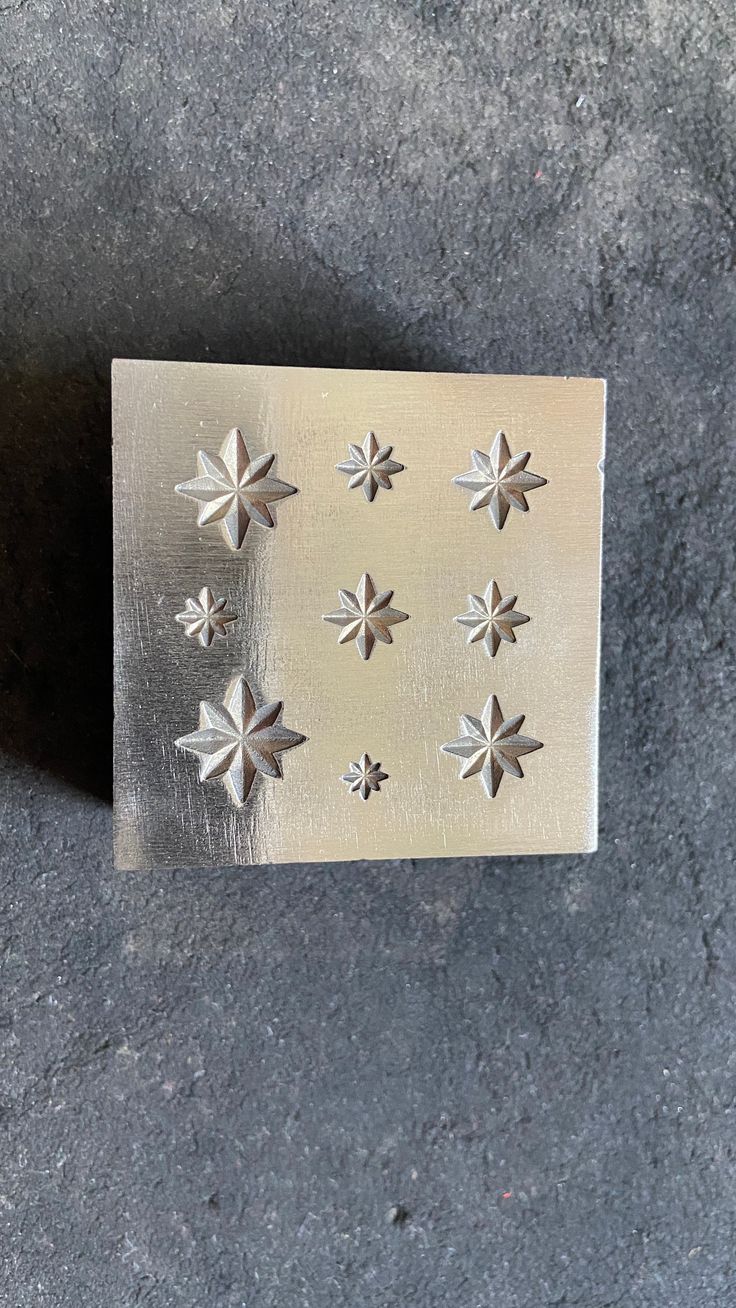

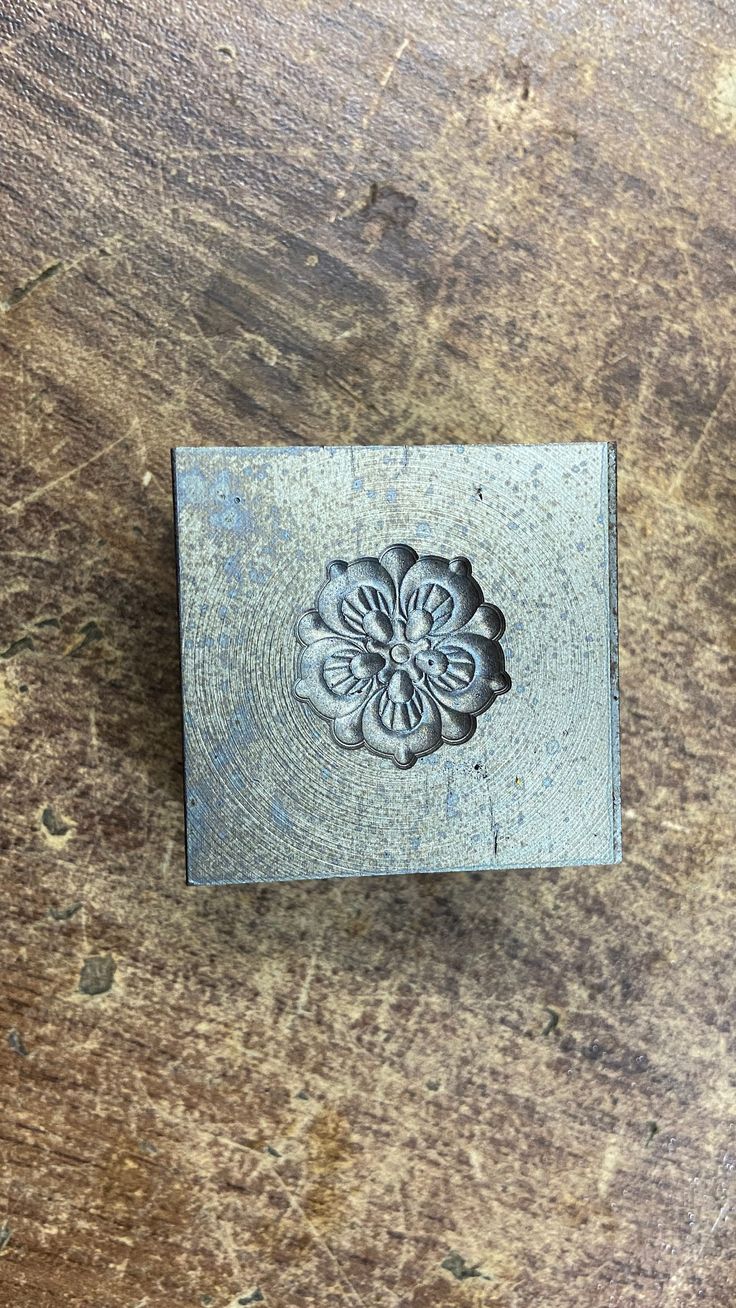

    Mold and die engraving

    Custom branding tags and metal ID plates

    Art and decorative metalwork

    Electrical panel labels and machine tags

    Choose the CNC metal engraving machine from Competence Techno Engineers Pvt Ltd for precise, long-lasting results. Contact us now to get the best solution tailored to your metalworking needs.
