CNC Double Head Wood Router Machine

CNC Double Head Wood Router Machine

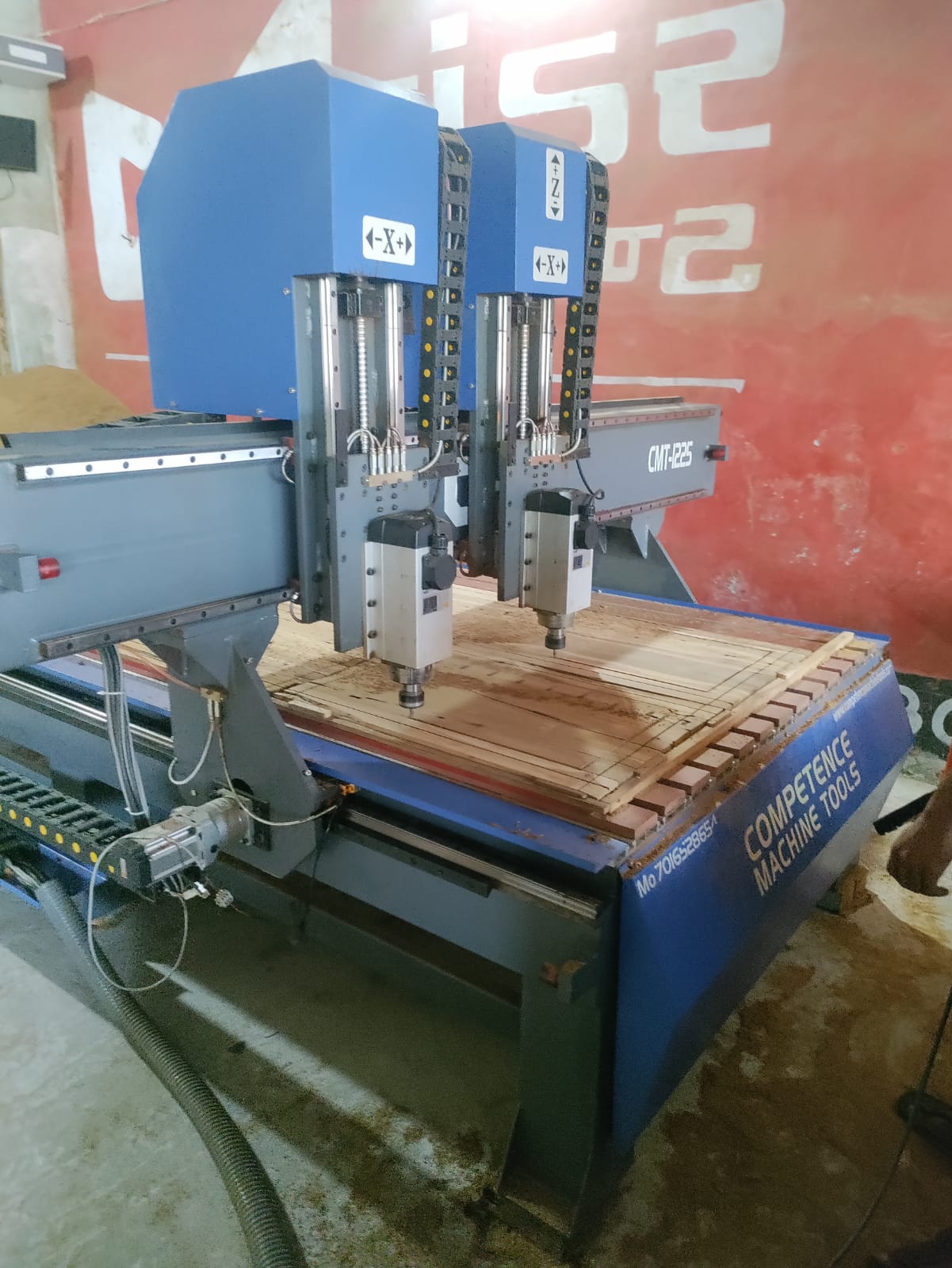

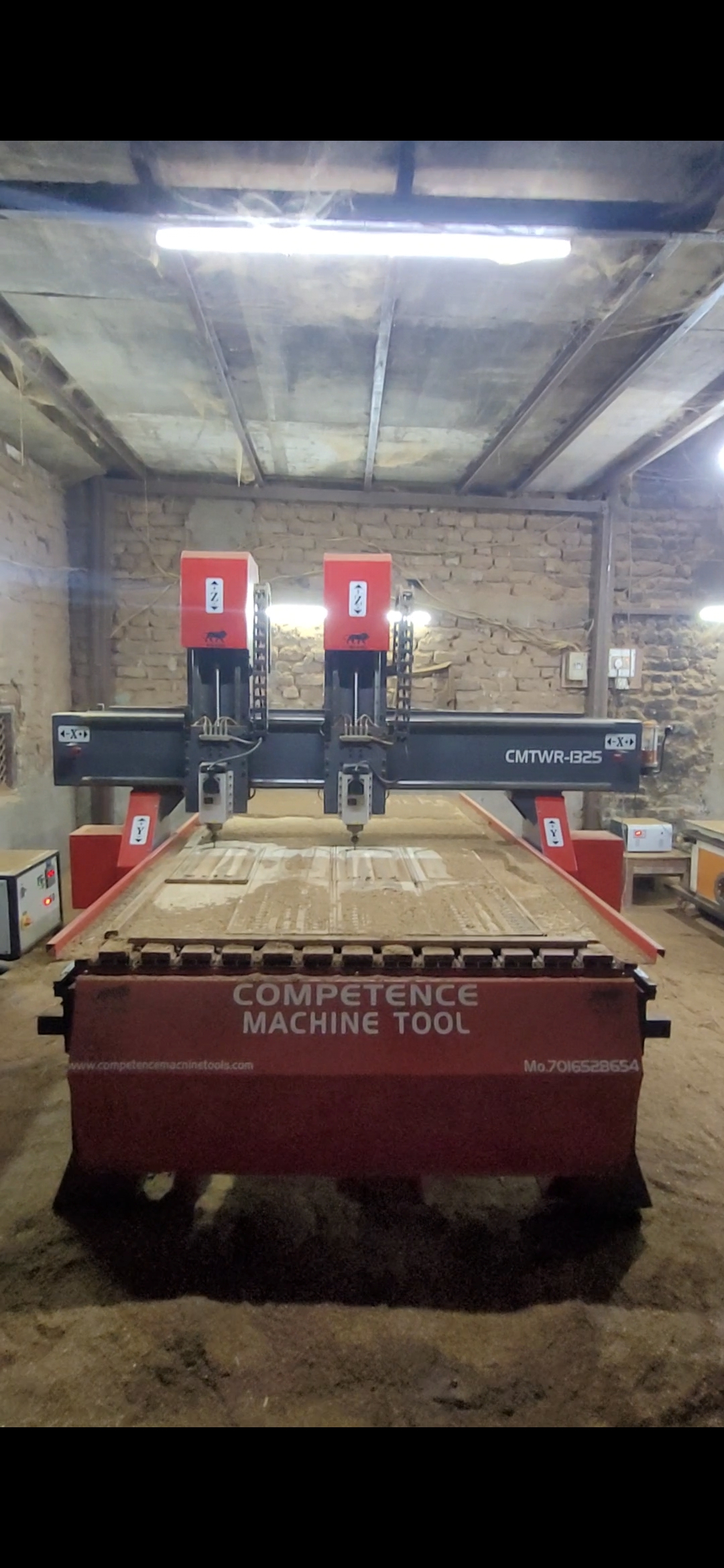

The Double Head Wood Router Machine is designed to double your productivity without compromising on precision. Perfect for mass production in woodworking, furniture, and signage industries, this machine allows simultaneous operations on two workpieces—saving time and boosting output.

Built with a robust MS steel frame and powered by high-speed spindles, this machine is an ideal solution for manufacturers looking for fast, repeatable, and accurate cutting, carving, and engraving.

Manufacturer: Competence Techno Engineers Pvt. Ltd.

Technical Specifications

Specification

Details

  • Working Area
  • X=1250/1830 mm
    Y=2500/3050/3650 mm
    Z=200 mm
  • Transmission
  • X=Helical Rack
    Y=Helical Rack
    Z= Ball Screw
  • Axis Motor
  • Stepper / Easy / Servo / Servo
  • Drive System
  • Belt Pully / Planetary Gear box
  • Linear Guide Rail
  • 25 mm LM Guide
  • Spindle Type
  • 3.5/4.5/6 kw (Air cooled)
    3.2/5.5/7.5 kw (water cooled)
  • Spindle RPM
  • 18000 to 24000
  • Max Travel Speed
  • 30000 mm/min
  • Machine Accuracy
  • 100 micron
  • CNC Controllers
  • DSP
  • Working Command
  • G-CODE
  • Lubrication
  • Auto / Manual

    • Key Features

    Dual working heads for simultaneous processing

    Perfectly synchronized for mirror or identical part cutting

    Compatible with wood, MDF, acrylic, PVC, and soft metals

    High-speed spindle with air/water cooling

    Servo/stepper motor drive for precision movement

    Supports G-code-based CNC control systems

    Ideal for bulk production and uniform output

    Applications

    Wooden door and panel carving

    Furniture manufacturing

    Decorative woodwork and moldings

    Signboard engraving

    Multi-part bulk production

    Boost efficiency and reduce cycle time with our CNC Double Head Wood Router Machine. Contact Competence Techno Engineers Pvt Ltd for a custom quote and machine demo.
