CNC Beam Drilling Machine

CNC Beam Drilling Machine

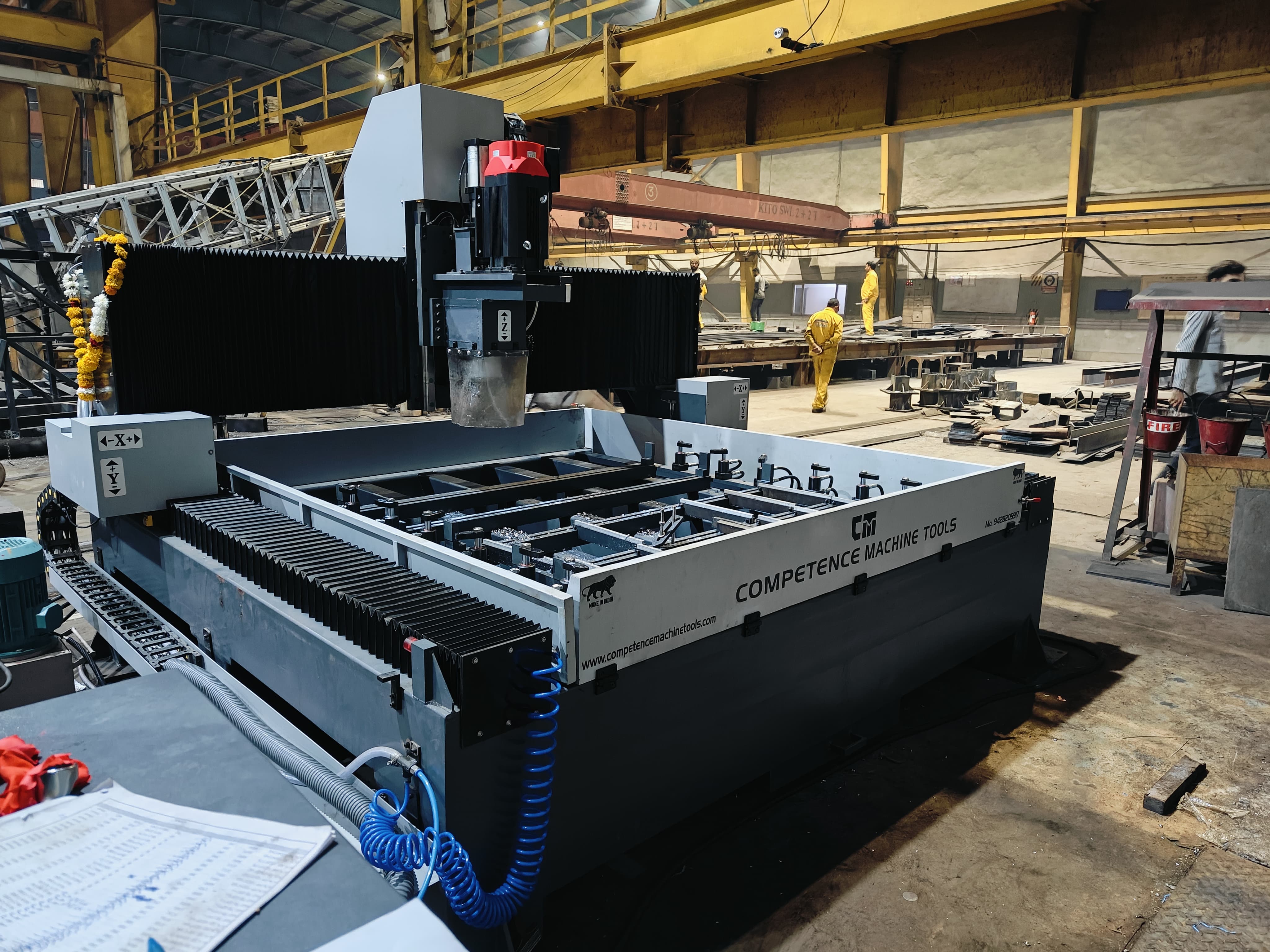

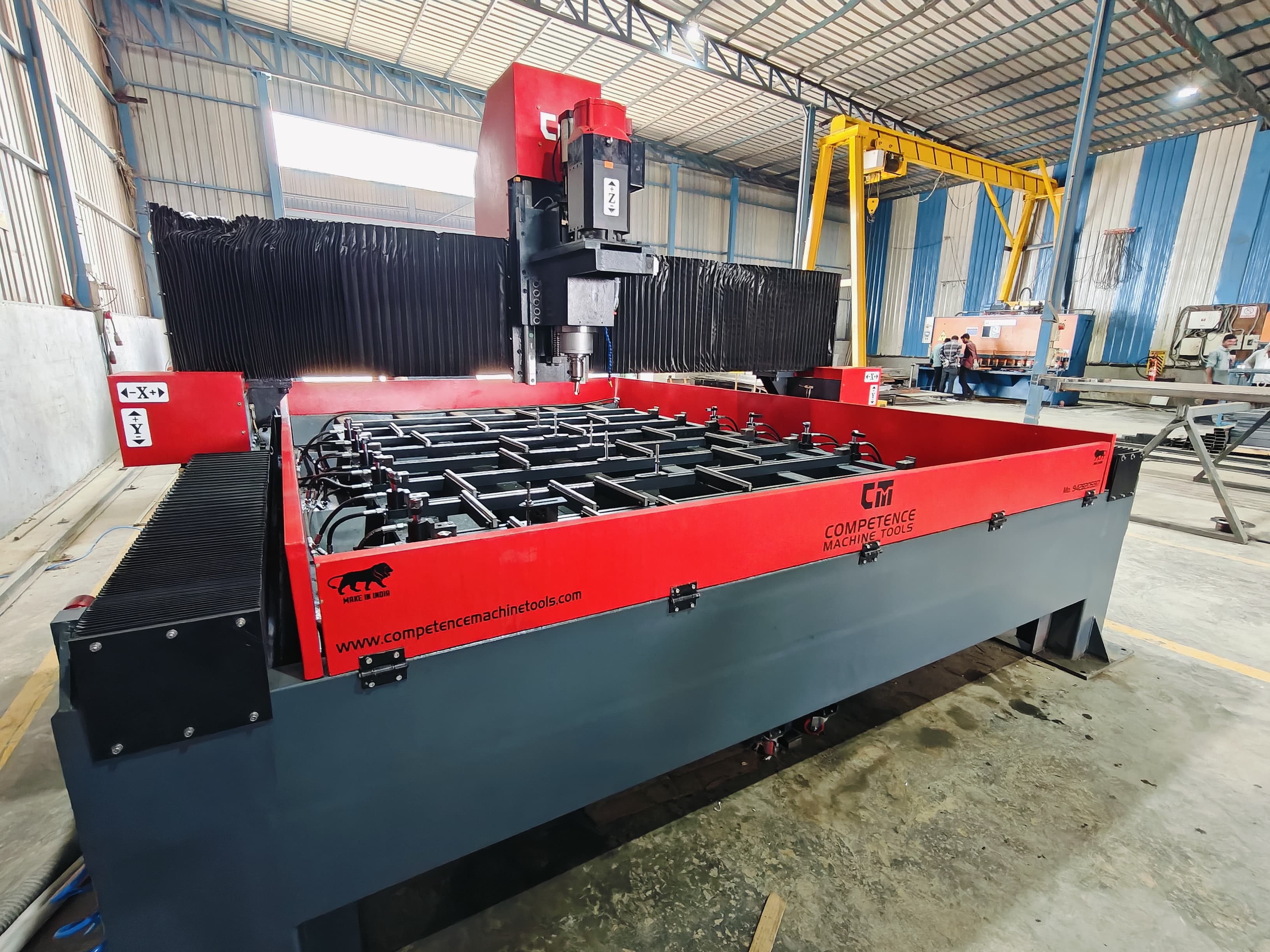

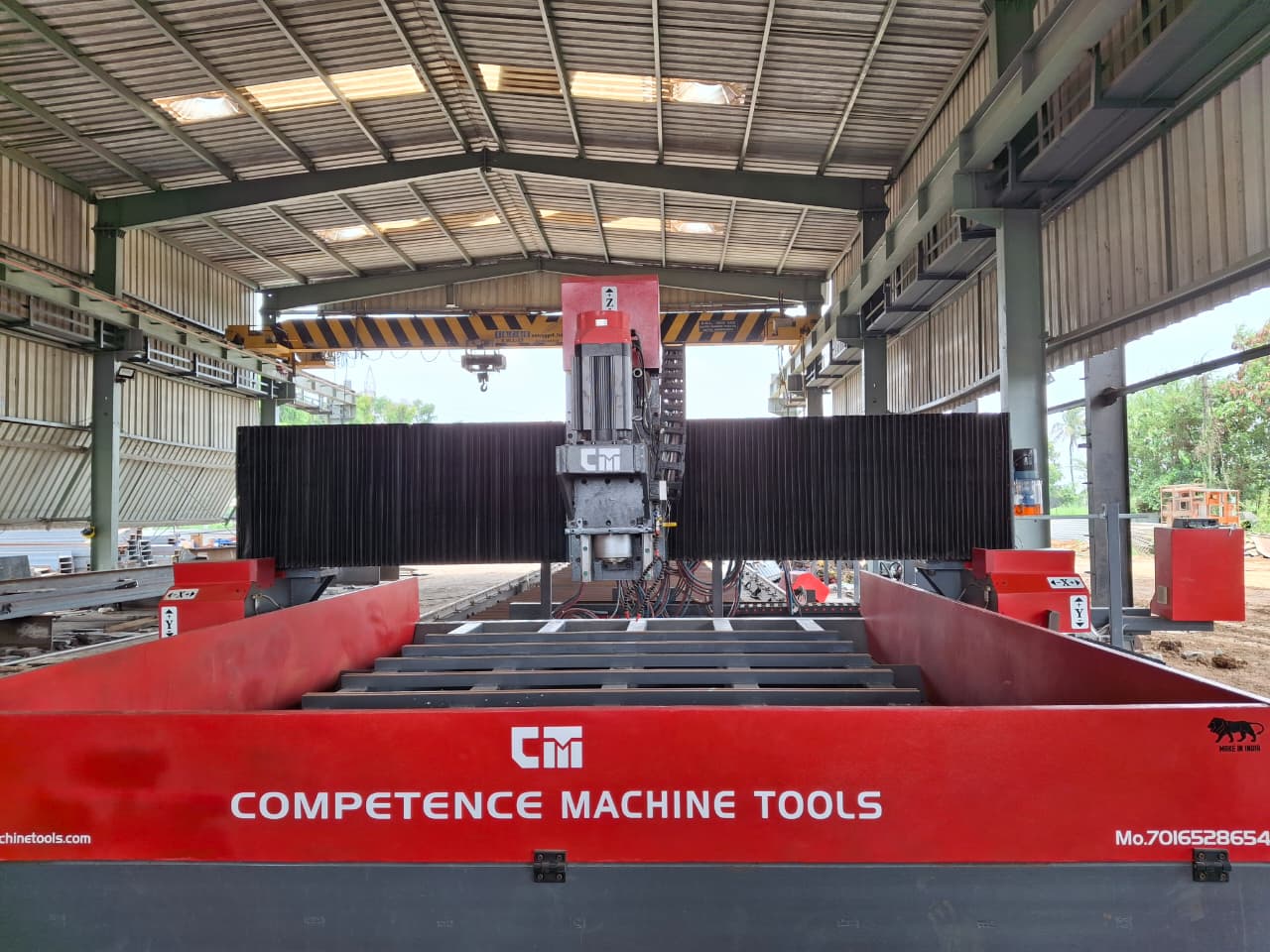

The CNC beam drilling machine from Competence Techno Engineers Pvt Ltd is a high-performance, precision-driven solution for automatic drilling of metal plates and steel beams. Engineered to meet RDSO standards and industrial-grade expectations, this machine is widely used in railways, heavy structures, fabrication units, and steel processing plants.

The This advanced CNC beam drilling machine delivers exceptional efficiency in drilling I-beams, H-beams, and flat plates with seamless CNC control and automation.

Manufacturer: Competence Techno Engineers Pvt. Ltd.

Technical Specifications

Feature

Specification

  • Working Area
  • Head-1(Flange 1)
    X Axis-1700mm
    Z Axis-1250mm
    Y Axis-12500mm
    Head-2(Flange 2)
    X Axis-1700mm
    Z Axis-1250mm
    Y Axis-12500mm
    Head-3(Web)
    X Axis-3500mm
    Z Axis-1600mm
    Y Axis-12500mm
  • Linear Motion
  • 45 Mm LM Guide &Block
    40 Mm Ball Screw In X &Z Axis
    Rack And Pinion In Y Axis
  • Gear Box
  • Planetary Gear Box
  • Spindle Type
  • BT40 With Through Coolant
  • Spindle Motor
  • 7.5/11 KW Spindle Motor, Max 6000rpm
  • Spindle Run Out
  • +/-2 Micron
  • Driving Motor
  • Mitsubishi Absolute Servo Motor
  • Repositioning Accuracy
  • +/- 50 Micron/Meter
  • Hole Diameter Tolerance
  • +/- 70-100 Micron
  • Drilling Capacity
  • Up To 40mm Diameter
  • Maximum Drilling Thicknessd
  • Up To 100mm
  • CNC Controller
  • Mitsubishi M-80
  • Lubrication
  • Easy Lube Make Automatic
  • Chip Conveyor
  • Standard Chip Conveyor
  • Axis Cover
  • PU Bellow Cover In All Axis
  • Machine Structure
  • Fabricated
  • Working Command
  • G-Code
  • Power Supply
  • 430V , 50/60Hz-3 Phase
  • Key Features

    Accurate and high-speed drilling for structural beams

    Robust MS steel frame for long service life and vibration resistance

    Servo-controlled movement on all axes for precision operation

    G-code-based programming for complete CNC flexibility

    Compatible with leading CNC controllers (ADTECH / Mitsubishi)

    Ideal for RDSO beam drilling applications

    Applications

    This machine is ideal for high-volume production and structural steel fabrication where accuracy and speed are critical—perfectly suited for:

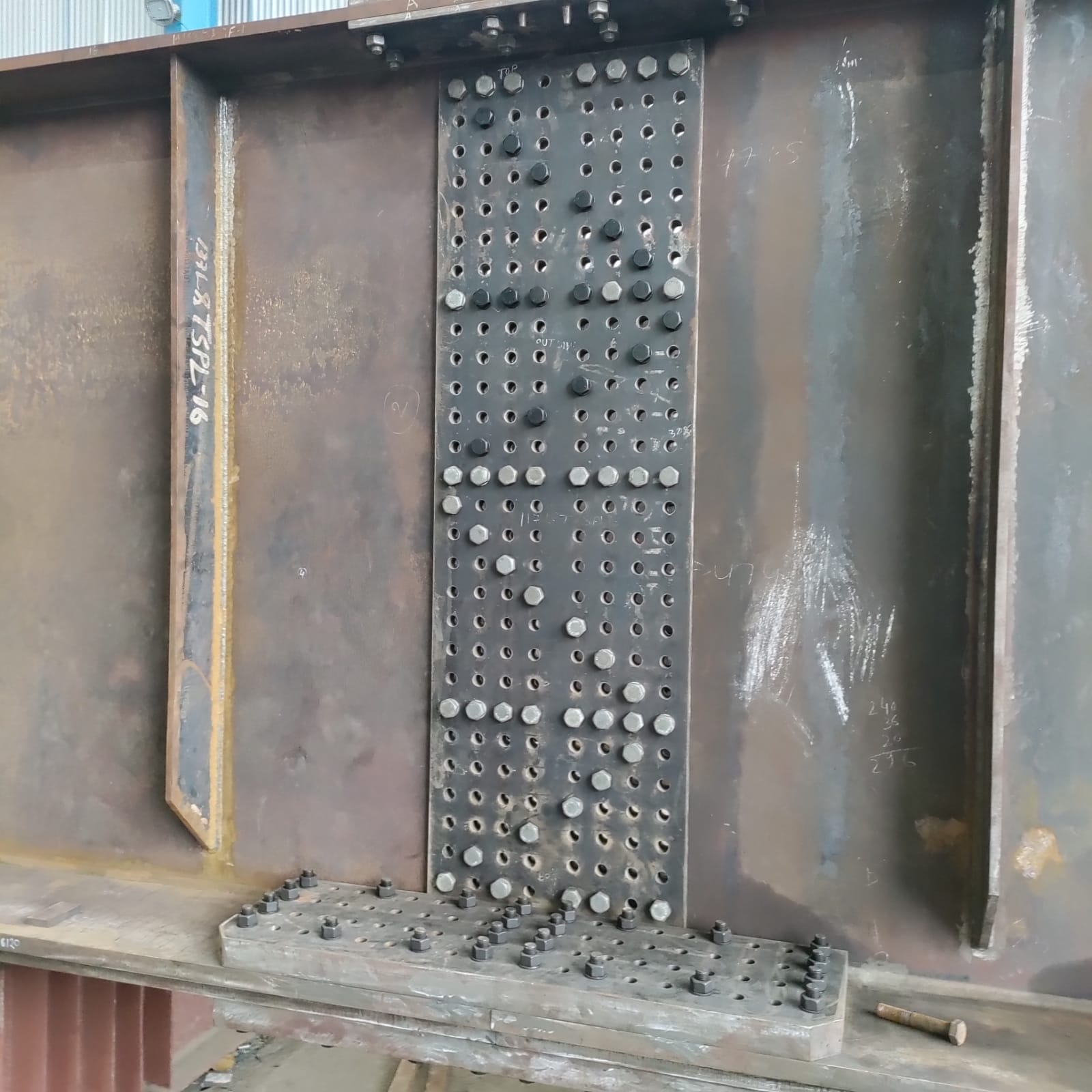

    Beam drilling operations

    RDSO-certified railway components

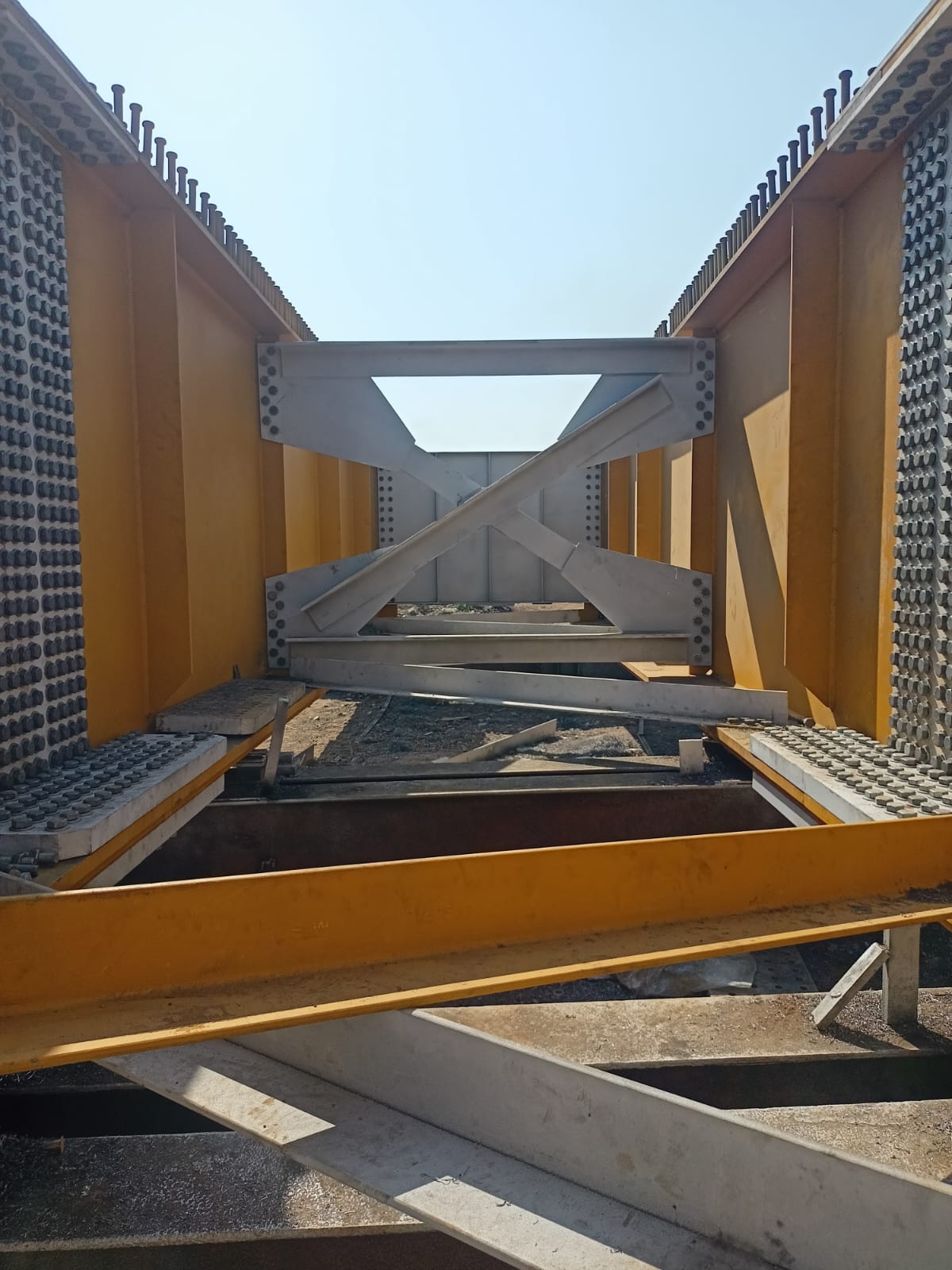

    Bridge, tower, and plant structures

    As a reliable CNC beam drilling machine manufacturer in India, Competence Techno Engineers Pvt Ltd combines innovative engineering with robust manufacturing to meet demanding industry standards and ensure top-notch performance.
