CNC Gantry Type Plasma Cutting Machine

CNC Gantry Type Plasma Cutting Machine

The CNC Gantry Plasma Cutting Machine by Competence Techno Engineers Pvt Ltd is built for large-format, high-speed metal cutting with outstanding accuracy. Designed for heavy-duty fabrication industries, this machine combines the power of CNC automation with a strong gantry structure—making it perfect for cutting large sheets of mild steel, stainless steel, and aluminum.

Whether you need precision cutting for thick plates or high-volume output, this CNC gantry plasma machine ensures consistent performance, reliable quality, and long-term durability.

Manufacturer: Competence Techno Engineers Pvt. Ltd.

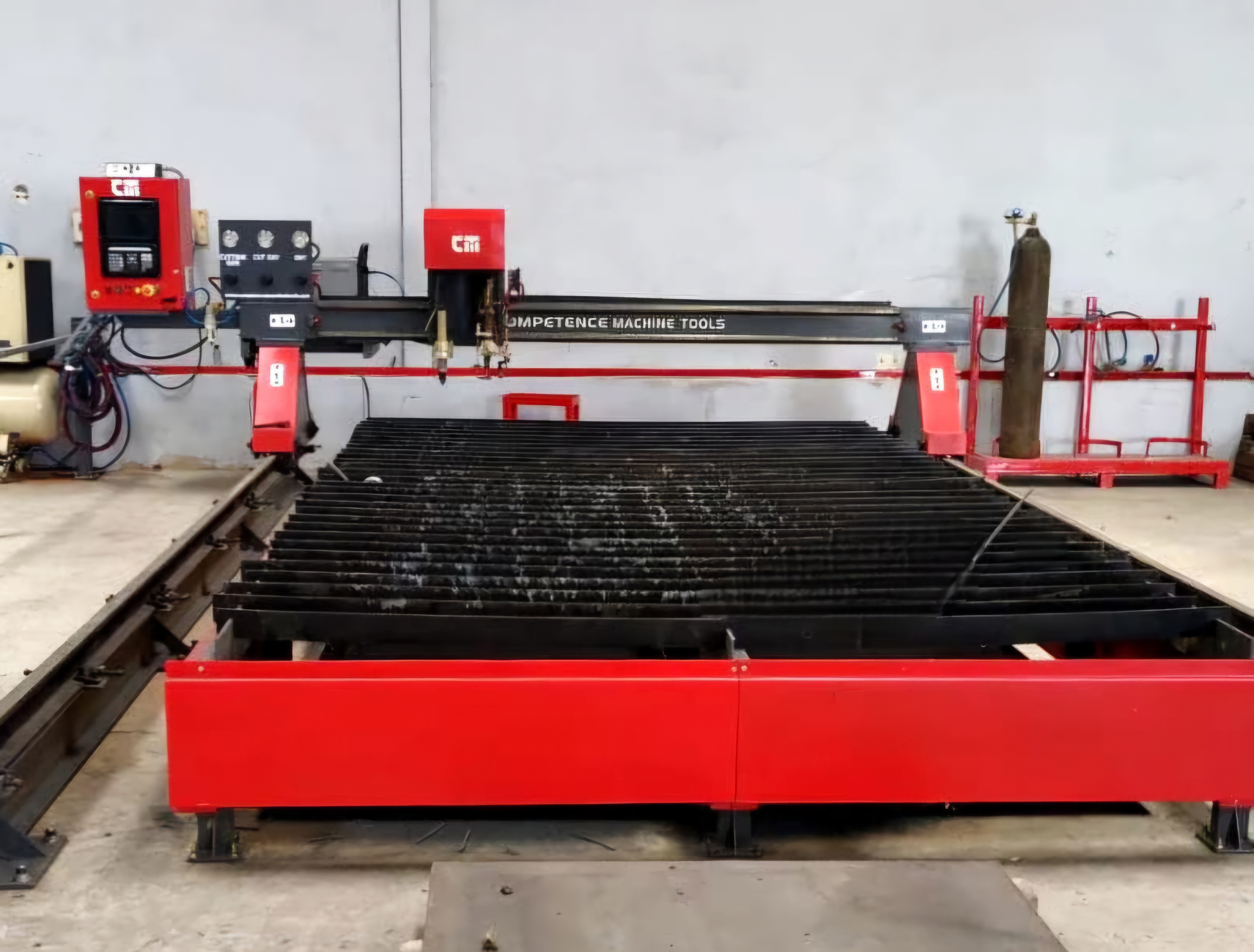

Large industrial CNC plasma cutting machine in a workshop, featuring red and black components, control panel, and gas cylinder, conveying precision engineering.

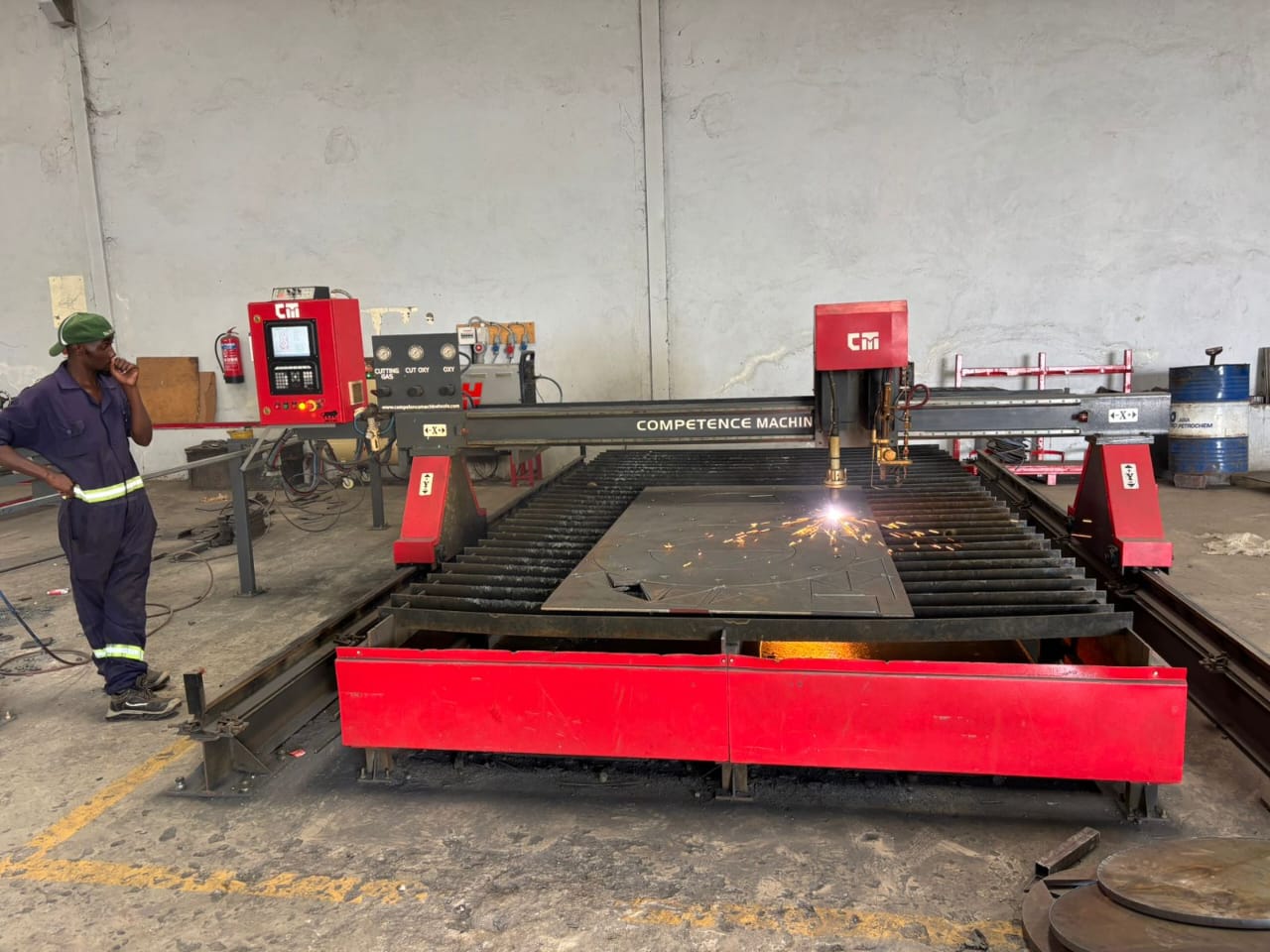

A man in a workshop observes a large red CNC machine cutting metal, with sparks flying. The atmosphere is industrious and focused.

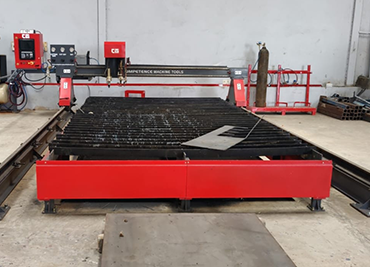

Industrial machine in a workshop with a large red base and black grate surface. Control panels and metal cylinders are visible in the background.

Technical Specifications (example — can be customized)

Specification

Details

  • Working Area
  • 1500x3000 mm / 2500x6000 mm / customize
  • Machine Structure
  • Fabricated MS Gantry Frame
  • Drive System
  • Dual-side Servo / Stepper Motor Drive
  • Guide Rails
  • 25 mm / 35 mm LM Guideways
  • Torch Type
  • Plasma / Optional Oxy-Fuel
  • Plasma Source
  • Hypertherm / Equivalent
  • Height Control
  • Automatic Torch Height Control (ATHC)
  • Control System
  • FLMC2300 / CNC Controller (G-Code based)
  • Cutting Thickness
  • Up to 50 mm (depending on plasma source)
  • Power Supply
  • 3PH 415V / 50Hz

    • Key Features

    Heavy-duty gantry structure for wide working areas

    High-speed CNC operation with ±0.1 mm accuracy

    Compatible with leading plasma sources (Hypertherm, Messer, etc.)

    Dual-side drive system for stability and precision

    Automatic torch height control for consistent cut quality

    Optional oxy-fuel torch integration for thicker plates

    Low maintenance and operator-friendly control interface

    Applications

    Steel fabrication and shipbuilding

    Railway coach and infrastructure cutting

    Heavy machinery components

    Industrial equipment and pressure vessels

    Structural and plate cutting services

    Get high performance and custom configurations with our CNC gantry plasma machine. Contact Competence Techno Engineers Pvt Ltd today for specifications, pricing, and on-site setup options.

    Stacks of industrial metal plates with cut-out shapes are neatly arranged on a concrete floor, evoking a sense of organized industry and precision.

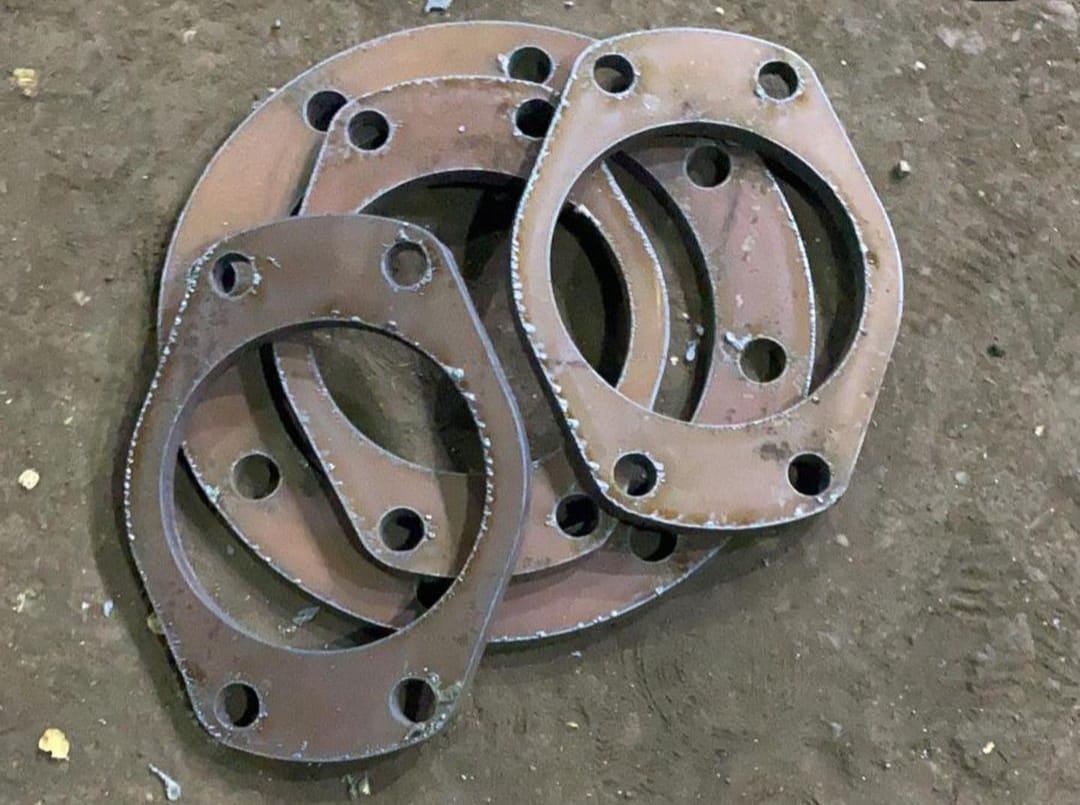

    A pile of rusty metal gaskets, each with four holes, lies on a rough, dusty concrete floor. The image conveys an industrial, gritty tone.
    A plasma cutter pierces a metal sheet, creating perfectly round holes. Sparks fly vividly, highlighting the precision and intensity of the process.
